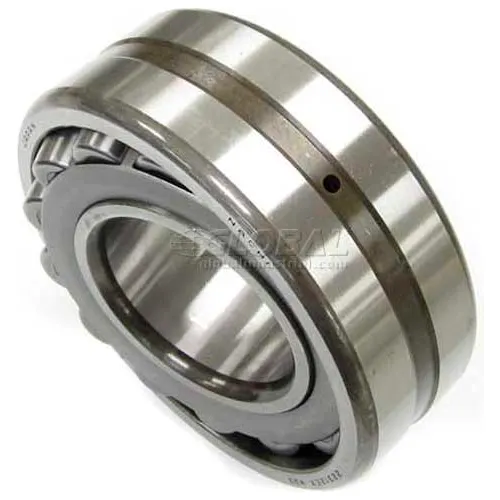

NACHI Double Row Spherical Roller Bearing 22317EXW33-V, 85MM Bore, 180MM OD, Vibratory Application

NACHI 29414EXS1, Spherical Roller Thrust Bearing, Extra Capacity, Steel Cage Improved Internal Design permits NACHI EX-type spherical roller thrust bearings to have twice the bearing life of our conventional E-type spherical roller thrust bearing. These bearings are designed to carry heavy axial loads and can support radial loads if the radial loads are less than 50% of axial loads. To prevent damages caused by sliding motion between rollers and raceway, these bearings must be subjected to a load more than minimum axial load (Fa min = Static Load Rating / 1000). These bearings are ...

Features NACHI Sheave Bearing is a Double Row Full Compliment Cylindrical Roller Bearing Since the bearing carries the highest Dynamic & Static Load Ratings, it is highly recommended for Rope Sheave applications If snap rings are used on both sides of outer ring, it is easy to set the axial location of the bearing Re-lubrication can be done through lubrication holes and groove on the inner ring or outer ring (for certain items) Operating temperature range is -30° to 80°C (-35° to 175°F)

NACHI Features Cylindrical Roller Bearings have a high radial load capacity and are suitable for high speeds The application of these bearings are intended to come in linear contact with raceways Inner or outer rings are separable for easy mounting and dismounting "N" and "NU" type can be used as free-end bearings since they have no ribs on either inner or outer ring "N" and "NU" rings can move axially relative to one another

NACHI Features Cylindrical Roller Bearings have a high radial load capacity and are suitable for high speeds The application of these bearings are intended to come in linear contact with raceways Inner or outer rings are separable for easy mounting and dismounting "N" and "NU" type can be used as free-end bearings since they have no ribs on either inner or outer ring "N" and "NU" rings can move axially relative to one another

NACHI 29340E, Spherical Roller Thrust Bearing, Extra Capacity, Bronze Cage Improved Internal Design permits NACHI EX-type spherical roller thrust bearings to have twice the bearing life of our conventional E-type spherical roller thrust bearing. These bearings are designed to carry heavy axial loads and can support radial loads if the radial loads are less than 50% of axial loads. To prevent damages caused by sliding motion between rollers and raceway, these bearings must be subjected to a load more than minimum axial load (Fa min = Static Load Rating / 1000). These bearings are ...
