DeWalt

Model # :WBB2192504

MPN #: DXCMV7518075

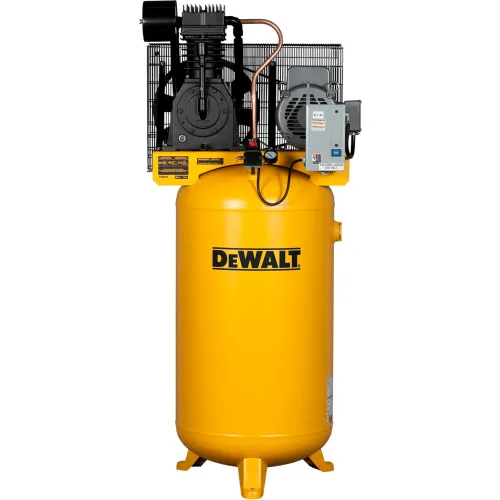

DeWALT® DXCMV7518075, 7.5HP, Two-Stage Compressor, 80 Gal,Vert., 175 PSI, 22.1 CFM,1-Phase 230V

Product Description
DeWALT® DXCMV7518075, 7.5HP, Two-Stage Compressor, 80 Gal,Vert., 175 PSI, 22.1 CFM,1-Phase 230V

FEATURES & BENEFITS:
  • Patented Pump Design Provides for a Cooler Running Pump
  • Patented piston design for improved compression efficiency
  • Cast iron cylinder head with patented deep-grove directional cooling fins
  • Precision bored cylinders with patented asymmetrical cooling fins
  • Patented cast iron flywheel design with large extended fins for improved cooling of pump and low pump RPM
  • Industrial performance delivers maximum CFM @ 175 PSI, provides enough power to operate more than one air tool or device at one time
  • Baldor industrial class electric motor: 4 pole, 1725 RPM, UL certified, NEMA rated
  • Uniquely designed metal belt guard improves compressor pump cooling by as much as 60 degrees F over other belt guard designs
  • Large capacity, 80 gallon ASME* certified tank
  • Supported by our Toll Free Customer Help Line


PRICE
$4,549.00

1
1
Ships in 3 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Length37 in
Width29 in
Height79 in
Weight623 lbs
Tank Size80 gal
Tank Outlet3/4"

Product Details

Oil TypeOil Lubricated
Air DryerNo
Oil SystemSplash Lubricated
Pump DriveBelt Drive
Pump MaterialCast Iron
Tank Drain ValveManual
Max PSI175 psi
Phase1
Tank OrientationVertical
Oil Sight GlassYes
Manufacturers Part NumberDXCMV7518075
Pump TypeTwo-Stage
Low Oil ShutoffNo
BrandDeWalt
CFM22.1 CFM
Horsepower7.5 HP
ColorYellow
After CoolerNo
Voltage230 V
Air FilterNo

Warranty

Warranty2 Years Limited

Compliance & Certifications

CertificationsASME Certified
