Marathon Motors, E903, 145TTDR5633, 2HP, 1800RPM, 200-208V, 3PH, 145T FR, DP

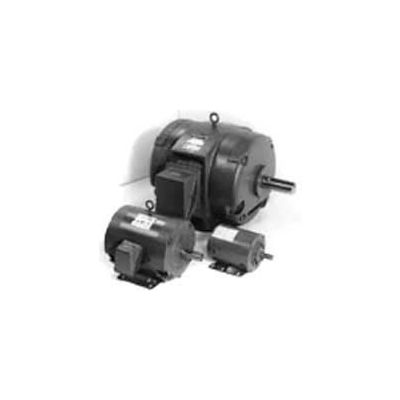

Actual product may differ from image shown

Marathon Motors, E903, 145TTDR5633, 2HP, 1800RPM, 200-208V, 3PH, 145T FR, DP

Item #: WBB870976

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $356.95

Save $17.85 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Marathon Motors, E903, 145TTDR5633, 2HP, 1800RPM, 200-208V, 3PH, 145T FR, DP

Marathon's Three Phase extensive line of General Purpose motors are available in ODP and TEFC construction, Foot Mounted and Footless. Horsepower sizes available from stock range from 1/12 HP through 1500 HP.

  • HORSEPOWER 2
  • ENCLOSURE DP
  • FRAME 145T
  • MOUNTING Rigid
  • NAMEPLATE RPM 1800
  • PHASE 3
  • MOTOR RPM 60Hz 1800
  • VOLTAGE 200
  • DUTY Continuous
  • SERVICE FACTOR 1.15
  • AMBIENT TEMP C 40
  • WEIGHT 46
  • UL Recognized Construction
  • CSA Y
  • RPM RANGE 1701-1800
  • ENCLOSURE TYPE Open/Drip Proof
  • IP CODE 22
  • is_motor Yes
  • ORIENTATION Horizontal
  • MANUFACTURER PART # E903
  • BRAND Marathon Motors
  • STARTING TYPE Across The Line
  • OPPOSITE END BEARING SIZE 6203
  • DRIVE END BEARING SIZE 6205
  • NEMA DESIGN B
  • APPROVAL-CE Y
  • ASSEMBLY F1 Only
  • KVA-CODE M
  • FL AMPS 6.7-6.4
  • INSULATION CLASS B
  • FL EFFICIENCY 84.00 Percent
  • BEARING-OPP-DRIVE-END 6203
  • BEARING-DRIVE-END 6205
  • 60 HERTZ kW 1.49
  • MODEL NUMBER 145TTDR5633
