Baldor-Reliance

Model # :WBB2078983

MPN #: EL11302

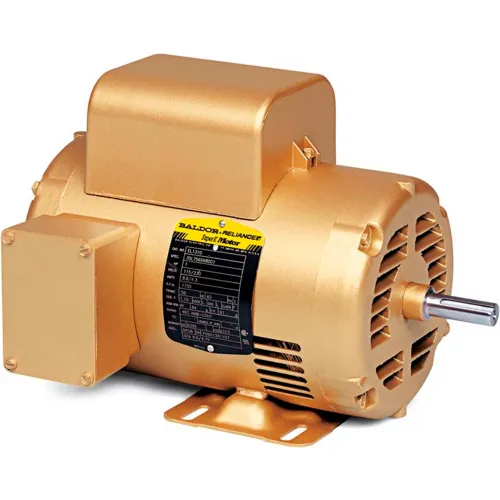

Baldor-Reliance EL11302 .33HP 56 Frame 12OORPM 115/230V ODP, Rigid, Premium Efficiency

Product Description
Baldor-Reliance Single Phase ODP motors are in accordance with the Small Motor Rule implemented by the Department of Energy. These motors feature copper windings, dynamically balanced rotors, ball bearings, heavy-gauge steel frames, and other industrial quality features.

Features:
  • Compressors
  • Pumps
  • Conveyors
  • Machine Tools
  • Air Handling
  • And many more
PRICE
$659.00

1
1
Ships within 1 Business Day
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Weight30
Opposite End Bearing Size6203
Drive End Bearing Size6203

Product Details

Motor RPM 60 Hertz1200 rpm
Mounting LocationRigid
Power Factor at Full Load83
Degree of ProtectionIP22
Phase1
Manufacturers Part NumberEL11302
EnclosureODP
Service Factor1.35
BrandBaldor-Reliance
Insulation ClassF
Horsepower1/3 HP
Efficiency TypePremium
Frame56
Hertz60 Hz
Enclosure TypeOpen/Drip Proof
Voltage115/230 V
Full Load Efficiency68
Nameplate RPM1140 rpm
Full Load Amps3.8/1.9 FLA
DutyContinuous
Poles6
Ambient Temperature40 °C
RPM Range1101-1200 rpm

Warranty

Warranty3 yr
