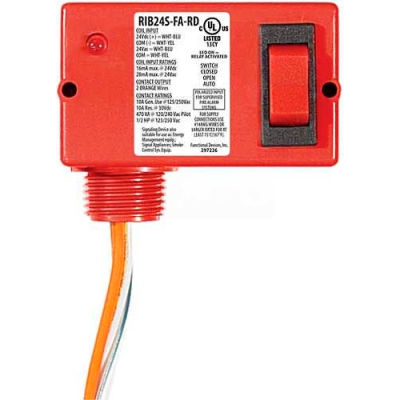

RIB® Enclosed Polarized Relay RIB24S-FA-RD, 10A, SPST, 24VACVDC, Override Switch, Red Housing
The Polarized RIB series is equivalent to the standard RIB series except for the coil which is polarized. We are currently offering nine polarized relays, most of which have a similar non-polarized counterpart. The "FA" in the model name stands for Fire Alarm. These relays are designed for operation in systems that require supervision from controllers and utilize end-of-line resistors. The relay can also be operated from A/C voltage (non-polarized) if desired.
The Polarized RIB series is equivalent to the standard RIB series except for the coil which is polarized. We are currently offering nine polarized relays, most of which have a similar non-polarized counterpart. The "FA" in the model name stands for Fire Alarm. These relays are designed for operation in systems that require supervision from controllers and utilize end-of-line resistors. The relay can also be operated from A/C voltage (non-polarized) if desired.
Product Specifications
- INCLUDESOverride Switch, Red Housing
- VOLTAGE24VAC/DC
- CONTACT TYPESPDT
- # RELAYS1
- WARRANTY YEARS1
- LENGTH INCHES1.7
- WIRE SIZE16"
- HUMIDITY RANGE5 To 95 Percent (Noncondensing)
- BRANDRIB®
- MANUFACTURERS PART NUMBERRIB24S-FA-RD
- WIRE RATING600V
- APPROVALS OR CERTIFICATIONSUL Listed
- AMPS10
- WIDTH INCHES2.8
- EXPECTED RELAY LIFE10 Million Cycles Minimum Mechanical
- OPERATING TEMPERATURE-30° To 140°F
- HEIGHT INCHES1.5
- DESCRIPTIONEnclosed Polarized Relay
Customer Review
Product Q & A
There are no questions for this product.
Popular item in this category
RIB® Enclosed Polarized Relay RIB24S-FA, 10A, SPST, 24VAC/VDC, Override Switch
Item #: B1034225
Not Yet Rated
Usually ships in 3 to 6 days
$14.75
RIB® Enclosed Polarized Relay RIB24S-FA-RD, 10A, SPST, 24VACVDC, Override Switch, Red Housing
$17.25
