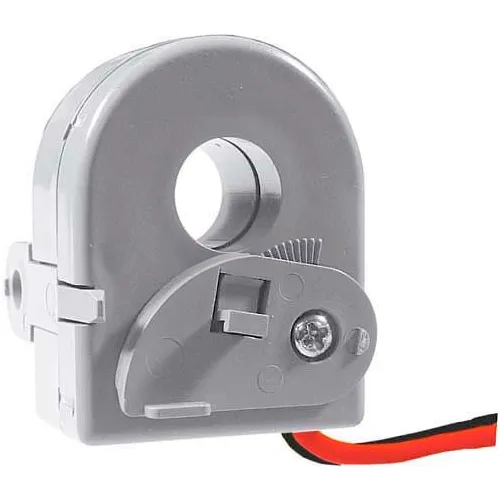

RIB® Enclosed Solid-Core AC Sensor RIBXK420-20, 0-20A, 4-20mA Transmitter Output, Wire Leads

RIB® Enclosed Solid-Core AC Sensor RIBXK420-20, 0-20A, 4-20mA Transmitter Output, Wire Leads

Item #: WBB1034163

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$44.40 up to 51% OFF

Price: $23.25

Save $1.16 with 5% off when you use your Global Industrial Credit Card.

Quantity Discount

  • Buy 1-5 $23.25 ea.
  • Buy 6+ $21.75 ea.

Quantity

Customers Also Viewed

RIB® Enclosed Solid-Core AC Sensor RIBXK420-20, 0-20A, 4-20mA Transmitter Output, Wire Leads

The X Series contains current sensors with or without a 10 or 20 Amp relay. An internal 10 Amp relay can be used to activate an external contactor, and currents up to 150 Amps are sensed externally with a Solid or Split current sensing ring. Other units control and sense up to 20 Amp loads, without the use of an external current ring, greatly reducing installation time. Models are available with fixed, or adjustable current sensing trigger points, or with voltage out. Externally visible LEDs indicate the status of the relay coil and current sensor trigger. The (Closed-Open-Auto) override switch, available on certain models, is a true override switch located on the load side of the relay.

  • DESCRIPTION Enclosed Solid-Core AC Sensor, Wire Leads
  • HEIGHT INCHES 1.5
  • THRESHOLD Analog
  • OPERATING TEMPERATURE -30° To 140°F
  • AMPS 0-20
  • WIDTH INCHES 1.46
  • APPROVALS OR CERTIFICATIONS UL Listed
  • MANUFACTURERS PART NUMBER RIBXK420-20
  • WIRE RATING 600V
  • BRAND RIB
  • HUMIDITY RANGE 5 To 95 Percent (Noncondensing)
  • WIRE SIZE 16"
  • LENGTH INCHES 2.05
  • WARRANTY YEARS 1
  • # RELAYS --
  • CONTACT TYPE --
  • VOLTAGE 30VAC/DC
