Marathon's Premium Efficient Motors are designed meet the new Energy Efficiency standards. These Motors are available in both Totally Enclosed Fan Cooled and Open Drip Proof construction. Horsepower ranges from 1/3 - 400 Hp.

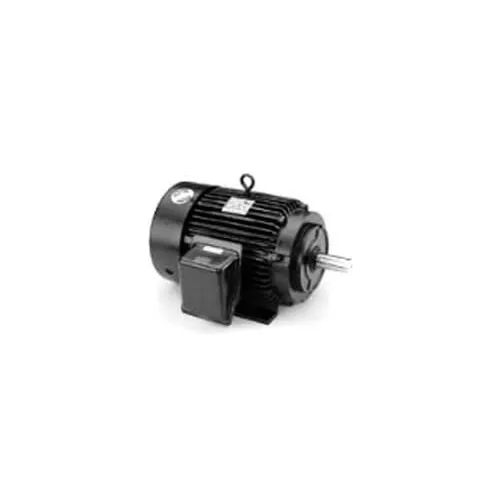

Marathon Motors, GT1034, 40HP, 1800RPM, 208-230/460V, 3PH, 324T FR, TEFC
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$3,549.00
1
1
Ships in 2 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Weight | 674 |
| Opposite End Bearing Size | 311 |
| Drive End Bearing Size | 312 |
Product Details
| 60 Hertz kW | 30 kW |
| Bearing Opp Drive End | 6311 |
| 50 Hertz Horsepower | 30 HP |
| 50 Hertz SF | 1.15 |
| KVA Code | G |
| Motor RPM 50 Hertz | 1500 rpm |
| IP Code | 43 |
| Motor RPM 60 Hertz | 1800 rpm |
| 50 Hertz Voltage | 190/380 V |
| 50 Hertz FLE | 94.1 FLE |
| 50 Hertz RPM | 1500 rpm |
| Mounting Location | Rigid |
| Phase | 3 |
| Manufacturers Part Number | GT1034 |
| Enclosure | TEFC |
| 50 Hertz Full Load Amps | 87/43.5 FLA |
| Service Factor | 1.15 |
| Bearing Drive End | 6312 |
| Brand | Marathon Motors |
| 50 Hertz Kilowatts | 22.4 kW |
| Insulation Class | F |
| Horsepower | 40 HP |
| Orientation | Horizontal |
| Frame | 324T |
| Hertz | 60/50 Hz |
| Starting Type | Y Start D RUN OR INV |
| Enclosure Type | Totally Enclosed |
| Voltage | 230/460 V |
| Full Load Efficiency | 94.1 |
| Nameplate RPM | 1800 rpm |
| Full Load Amps | 94/47 FLA |
| Duty | Continuous |
| Ambient Temperature | 40 °C |
| RPM Range | 1701-1800 rpm |
Compliance & Certifications
| CSA Certified | Y |
| CE Approved | Y |
| NEMA Design | B |
| UL | Recognized Construction |
