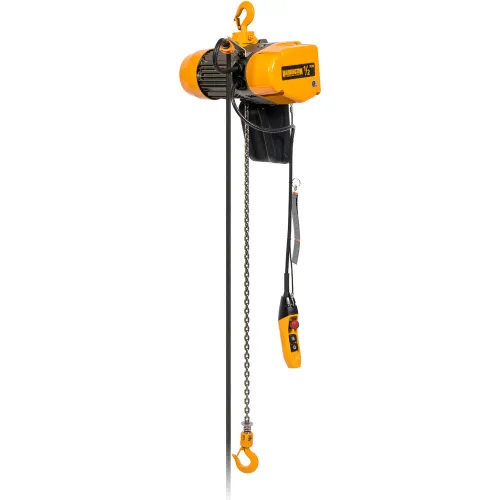

Harrington EQ 1 Ton Dual Speed Electric Chain Hoist, 20' Lift, 23/3.8 FPM, 460V

Product Description
Harrington EQ Dual Speed Electric Chain Hoist W/ Chain Container 1 Ton, 20' Lift, 23/3.8 Ft/min, 460V

Harrington EQ Dual Speed Electric Chain Hoist W/ Chain Container 1 Ton, 20' Lift, 23/3.8 Ft/min, 460V

Harrington's EQ Series three-phase dual speed (VFD Control) electric chain hoists are ergonomically designed for easy installation and operation in mediumand heavy-duty industrial applications. These hoists have an extremely compact and lightweight body, and are perfect for any work station application. The EQ hoists include a no-load high-speed function that automatically increases hoist speed up to 130 percent when the load is less than 30 percent of working load limit. Recommended for -4° to +104°F and humidity of 85% or less. Includes chain container.

PRICE
$4,209.00

1
1
Ships in 17 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Length15 in
Width21 in
Height19 in
Weight Capacity2000 lbs
Weight110 lbs
Control Cord Length16 ft
Lift20 ft
Hook Opening1.2 in
Head Room20-7/10 in
Lift Speed23/3.8 ft/min

Product Details

Assembly RequiredNo
Number of Speeds2
ClutchFriction
MaterialAluminum
Phase3
BrakePull-Rotor
Manufacturers Part NumberEQ010SD-20
BrandHarrington
TypeChain Hoist
Horsepower2 HP
ColorYellow
SeriesEQ
Duty RatingH4
Voltage460 V
Trolley ConfigurationHook Mount
Control110V Push Button Control Pendant
Chain Falls1
DescriptionTwo Speed
Operating Conditions-4° to +104°F

Warranty

Warranty5 yr

Compliance & Certifications

CertificationsUL/CSA Listed
