Harrington

Model # :WBB2346606

MPN #: EQP010SD-10

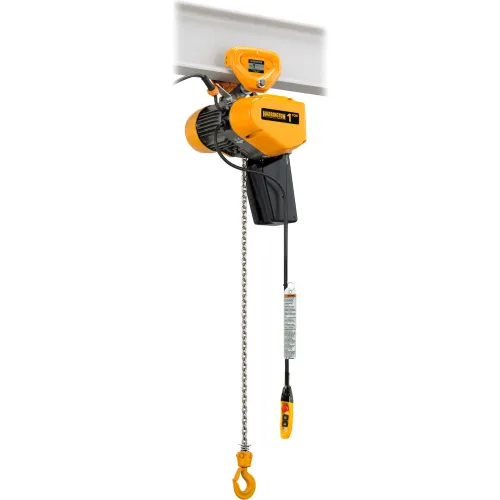

Harrington EQ 1 Ton, Dual Speed, Electric Chain Hoist W/ Push Trolley, 10' Lift, 23/3.8 FPM, 460V

Product Description
Harrington EQ Dual Speed Electric Chain Hoist W/ Push Trolley & Chain Container 1 Ton, 10' Lift, 23/3.8 Ft/min, 460V

Harrington EQ Dual Speed Electric Chain Hoist W/ Push Trolley & Chain Container 1 Ton, 10' Lift, 23/3.8 Ft/min, 460V

Harrington's EQ Series three-phase dual speed (VFD Control) electric chain hoists are ergonomically designed for easy installation and operation in mediumand heavy-duty industrial applications. These hoists have an extremely compact and lightweight body, and are perfect for any work station application. The EQ hoists include a no-load high-speed function that automatically increases hoist speed up to 130 percent when the load is less than 30 percent of working load limit. Mounting Harrington's EQ Series three-phase dual speed (VFD Control) electric chain hoist to our PT push trolley will create an easy and economical method of transporting the load. This combination is ideal for workstations and infrequent moves.Recommended for -4° to +104°F and humidity of 85% or less. Includes chain container & Chain Container.

PRICE
$4,659.00

1
1
Ships in 17 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Length15 in
Width21 in
Height19 in
Weight Capacity2000 lbs
Weight110 lbs
Control Cord Length6 ft
Beam Width2-2/7 to 5 in
Lift10 ft
Hook Opening1.2 in
Head Room19-1/3 in
Lift Speed23/3.8 ft/min

Product Details

Assembly RequiredNo
Number of Speeds2
ClutchFriction
MaterialAluminum
Phase3
BrakePull-Rotor
Manufacturers Part NumberEQP010SD-10
BrandHarrington
TypeChain Hoist
Horsepower2 HP
ColorYellow
SeriesEQ
Duty RatingH4
Voltage460 V
Trolley ConfigurationPush Trolley
Control110V Push Button Control Pendant
Chain Falls1
DescriptionTwo Speed
Operating Conditions-4° to +104°F

Warranty

Warranty5 yr

Compliance & Certifications

CertificationsUL/CSA Listed
