Intended for use in the event of an electric or standard vehicle fire.
Dimensions:

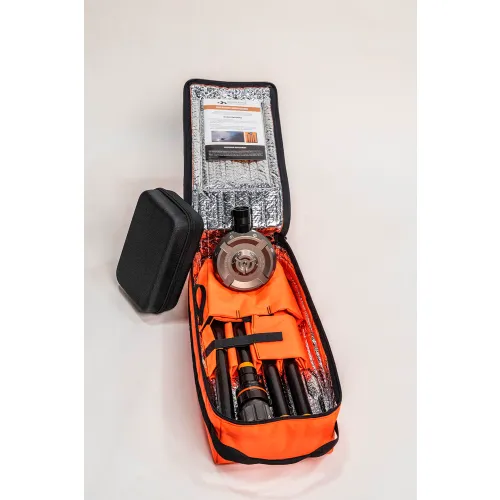

Water Mister Features:
- (1) 6" Diameter "no tip" Mister spray head with 15 individual omni-directional spray mist nozzles that deliver true fire fighting droplets <1,000 microns
- (1) Valve pipe length (with twist to open valve and an "always active" universal swivel)
- (3) Standard pipe lengths
- Each connection has large threading for ease of assembly
- Hose connection has a 1-1/2" forestry lug fitting (compatible with US fire hoses and trucks)
- (1) In-line mesh / filter sleeve
- Carry and deployment-friendly / high visibility bag
- Zippered hard case (for extra gaskets, in-line screens, and / or spanner wrenches)
How it Works:
- The Mister is designed to be used in conjunction with an EV blanket during an electric vehicle fire-creating a comprehensive EV Fire Suppressor System
- With 100 psi at the Mister head, a 10 gpm low-flow water mist spray will be delivered directly to the vehicle's undercarriage to cool the chassis, pulling heat away from the battery modules, to shut down a thermal runaway event. (fire fighting droplet size/<1,000 microns)
- Tests validate the Mister's low-flow rate is as effective as high-flow models, while preserving water resources and reducing the amount of toxic runoff. The fine mist can also help mitigate and dampen vapor cloud ignitions that could occur underneath the EV blanket
- Covering a vehicle quickly with an EV blanket, when done with a good ground seal, will provide a measure of containment and protection. It helps deprive the fire of free oxygen, thus suppressing flames, which in turn instantly lowers the temperature and decreases the smoke volume
- In certain situations, the Mister may be used for stand-alone cooling and has been found to offer effective undercarriage coverage in winds up to 25 mph
- Recommended for use with Brimstone EV Fire Suppressor Blanket (standard or XL)
