Marathon's Hazardous Duty motors are ideal for a wide variety of applications where hazardous fumes or dust may be present. The motors are available in three phase and single phase with ratings, in stock, from 1/4 HP through 300 HP.

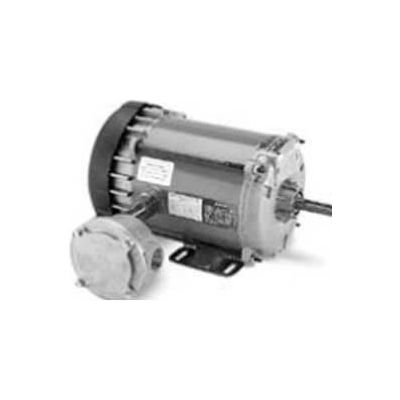

Marathon Motors Explosion Proof Motor, HG456, 5KH35LNB164X, 1/6HP, 115V, 1800RPM, 1PH, EPNV
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$625.00
1
1
Ships in 2 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Weight | 20.8 lbs |
| Opposite End Bearing Size | Ball |
Product Details
| 60 Hertz kW | 0.13 kW |
| KVA Code | T |
| IP Code | 54 |
| Motor RPM 60 Hertz | 1800 rpm |
| Mounting Location | Rigid |
| Phase | 1 |
| Manufacturers Part Number | HG456 |
| Enclosure | EPNV |
| Service Factor | 1 |
| Bearing Drive End | Ball |
| Brand | Marathon Motors |
| RPM | 1800 rpm |
| Hazardous Location | EXP PROOF CL I GR D CL II GR F&G T3B |
| Insulation Class | A |
| Horsepower | 1/6 HP |
| Orientation | Horizontal |
| Frame | 48 |
| Hertz | 60 Hz |
| Starting Type | Spilt Phase |
| Rotation | CCW ° |
| Thermal Protection | Automatic Protector |
| Enclosure Type | Explosion Proof |
| Voltage | 115 V |
| Full Load Efficiency | 62 |
| Full Load Amps | 3.3 FLA |
| Duty | Continuous |
| Ambient Temperature | 40 °C |
| RPM Range | 1701-1800 rpm |
Compliance & Certifications
| CE Approved | N |
| NEMA Design | No Design Code |
| UL | UL Listed |
