Marathon Motors Explosion Proof Motor, U061A, 184TTGS4001, 5HP, 208-230/460V, 36

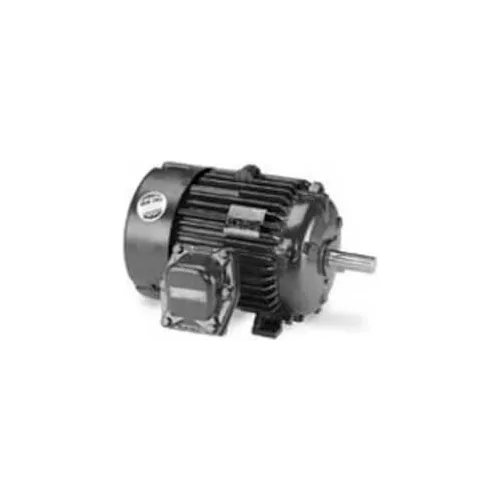

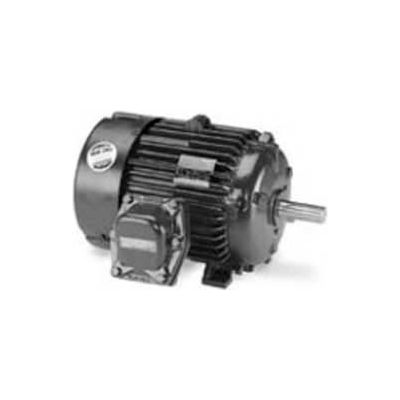

Actual product may differ from image shown

Marathon Motors Explosion Proof Motor, U061A, 184TTGS4001, 5HP, 208-230/460V, 36

Item #: WBB868091

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $1,454.00

$242.33/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Marathon Motors Explosion Proof Motor, G661, 56T17G5313, 3/4HP, 208-230/460V, 1800RPM, 3PH, EPFC

Marathon Motors Explosion Proof Motor, G661, 56T17G5313, 3/4HP, 208-230/460V, 1800RPM, 3PH, EPFC

Stainless Steel Straight Leg Slotted Shim 260-Piece Full Kit w/ Box - Size A - Made In USA

Stainless Steel Straight Leg Slotted Shim 260-Piece Full Kit w/ Box - Size A - Made In USA

Marathon Motors Explosion Proof Motor, G827, 056T17E5310, 1/4HP, 208-230/460V, 1800RPM, 3PH, EPNV

Marathon Motors Explosion Proof Motor, G827, 056T17E5310, 1/4HP, 208-230/460V, 1800RPM, 3PH, EPNV

Marathon Motors Explosion Proof Motor, G654A, 056C17G5316, 1/2HP, 115/208-230V, 1800RPM, 1PH, EPFC

Marathon Motors Explosion Proof Motor, G654A, 056C17G5316, 1/2HP, 115/208-230V, 1800RPM, 1PH, EPFC

Marathon Motors Explosion Proof Motor, G852, 056C17E5319, 1/4HP, 115/208-230V, 1800RPM, 1PH, EPNV

Marathon Motors Explosion Proof Motor, G852, 056C17E5319, 1/4HP, 115/208-230V, 1800RPM, 1PH, EPNV

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Stainless Steel Straight Leg Slotted Shim 130-Piece Tool Crib Kit w/ Box - Size A - Made In USA

Stainless Steel Straight Leg Slotted Shim 130-Piece Tool Crib Kit w/ Box - Size A - Made In USA

Marathon Motors Explosion Proof Motor, U061A, 184TTGS4001, 5HP, 208-230/460V, 3600RPM, 3PH, EPFC

Marathon's Hazardous Duty motors are ideal for a wide variety of applications where hazardous fumes or dust may be present. The motors are available in three phase and single phase with ratings, in stock, from 1/4 HP through 300 HP.

Product Details

  • 60 Hertz kW 3.3 kW
  • Mounting Location Rigid
  • Bearing Drive End 206
  • Assembly Required F1 Only
  • 50 Hertz Kilowatts 2.24 kW
  • RPM 3600 rpm
  • Hazardous Location EXP PROOF CL I GR D CL II GR F and G T3B
  • Ambient Temperature 40 °C
  • KVA Code J
  • IP Code 54
  • Insulation Class F
  • 50 Hertz SF 1.15
  • RPM Range 3001-3600 rpm
  • 50 Hertz Horsepower 3 HP
  • Voltage 208-230/460 V
  • Frame 184T
  • Inverter Speed Range Constant 10:1
  • Service Factor 1.15
  • Horsepower 5 HP
  • Enclosure Type Explosion Proof
  • Is_Motor Yes
  • Duty Continuous
  • Enclosure EPFC
  • Phase 3
  • Orientation Horizontal
  • 60 Hertz RPM 3600 rpm
  • Starting Type Line or Inverter
  • Full Load Efficiency 87.5
  • Brand Marathon Motors
  • Full Load Amps 13.4-12.4-6.2 FLA
  • Motor RPM 60 Hertz 3600 rpm
  • Thermal Protection Thermostats (Normally Closed)
  • Hertz 60/50 Hz
  • Motor RPM 50 Hertz 3000 rpm
  • Manufacturers Part Number U061A
  • 50 Hertz Full Load Amps 9.6/4.8 FLA
  • 50 Hertz Voltage 190/380 V

Compliance & Certifications

  • NEMA Design B
  • UL UL Listed
  • CE Approved N

Weights & Dimensions

  • Drive End Bearing Size 206
  • Opposite End Bearing Size Ball
  • Weight 145.6 lbs
