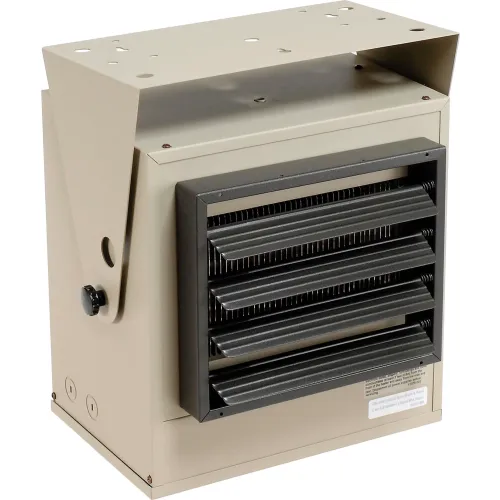

TPI Multi-Watt Unit Heater HF5605T - 240/208V 1 PH

TPI Multi-Watt Unit Heater HF5605T - 240/208V 1 PH

Item #: WBB45463

(1)

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,215.00 up to 36% OFF

Price: $778.00

$129.67/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

TPI Multi-Watt Unit Heater H3H5605T - 3750/5000W - 208/240V 3 PH

TPI Multi-Watt Unit Heater H3H5605T - 3750/5000W - 208/240V 3 PH

Global Industrial® Unit Heater, Horizontal Downflow, Multi-Watt, 5000-1881W, 208-240V

Global Industrial® Unit Heater, Horizontal Downflow, Multi-Watt, 5000-1881W, 208-240V

Global Industrial™ 30" Oscillating Wall Mount Fan, 3 Speed, 8775 CFM, 1/3 HP, 1 Phase

Global Industrial™ 30" Oscillating Wall Mount Fan, 3 Speed, 8775 CFM, 1/3 HP, 1 Phase

Global Industrial® Unit Heater, Horizontal or Vertical Downflow, 10KW, 480V, 3 Phase

Global Industrial® Unit Heater, Horizontal or Vertical Downflow, 10KW, 480V, 3 Phase

Global Industrial® Unit Heater, Horizontal or Vertical Downflow, 7.5KW - 480V - 3 Phase

Global Industrial® Unit Heater, Horizontal or Vertical Downflow, 7.5KW - 480V - 3 Phase

Unit Heater, Multi-Watt Horizontal Downflow Multi-Watt, 5000-1874W, 240-208V

Unit Heater, Multi-Watt Horizontal Downflow Multi-Watt, 5000-1874W, 240-208V

TPI Unit Heater, Horizontal or Vertical Discharge P3P5605T - 5000W 480V 3 PH

TPI Unit Heater, Horizontal or Vertical Discharge P3P5605T - 5000W 480V 3 PH

TPI Unit Heater, Horizontal or Vertical Discharge F1F5103N - 3300W 208V 1 PH

TPI Unit Heater, Horizontal or Vertical Discharge F1F5103N - 3300W 208V 1 PH

Global Industrial® Portable Electric Garage Space Heater, 120V, 1500W

Global Industrial® Portable Electric Garage Space Heater, 120V, 1500W

Global Industrial® Electric Salamander Heater, Adjustable Thermostat, 480V, 3 Phase, 15000 Watt

Global Industrial® Electric Salamander Heater, Adjustable Thermostat, 480V, 3 Phase, 15000 Watt

Global Industrial™ 30" Oscillating Pedestal Fan, 8,775 CFM, 1/3 HP, 1 Phase

Global Industrial™ 30" Oscillating Pedestal Fan, 8,775 CFM, 1/3 HP, 1 Phase

Global Industrial™ Mobile Reversible Whiteboard With Silver Frame, 72"W x 48"H

Global Industrial™ Mobile Reversible Whiteboard With Silver Frame, 72"W x 48"H

Krowne 17-108WL - Royal Series 8" Center Wall Mount Pre-Rinse

Krowne 17-108WL - Royal Series 8" Center Wall Mount Pre-Rinse

Global Industrial™ Plastic Shipping/Storage Tote w/ Attached Lid, 21-7/8"x15-1/4"x12-7/8", Gray

Global Industrial™ Plastic Shipping/Storage Tote w/ Attached Lid, 21-7/8"x15-1/4"x12-7/8", Gray

Mitutoyo 500-196-30 Digimatic 0-6''/150MM Stainless Steel Digital Caliper

Mitutoyo 500-196-30 Digimatic 0-6''/150MM Stainless Steel Digital Caliper

Free Shipping

MULTI-WATT FAN FORCED UNIT HEATERS
Multi Watt Heater 240/208V
Fan forced unit heaters allow horizontal or vertical discharge using a pivot-action mount. These unit heaters are approved for residential applications. Fan heaters are made using a heavy gauge welded steel cabinet with powder coat finish. Fan forced heaters allow easy control access using a hinged and latched access door. Heavy-duty mounting bracket allow easy installation to walls or ceiling with a minimum mounting height of 6''. Mounting bracket allows pivot-action using hand screw knobs to lock the heater into place. Unit heaters feature a block finned steel element and automatic resetting over-heat limit control for safety and efficiency. Unit heaters include individually adjustable louvers to direct heat. Totally enclosed single phase, permanently lubricated motor is thermally protected for long life. Motor features rubber insulators to minimize vibration and noise. Fan forced unit heaters include hydraulic action thermostat with adjustable temperature range of 50-90 degrees. Thermostat allows remote and wall thermostat installation (not included). Heaters measure 14""W x 11-3/4""D x 14""H. cETLus listed. One Year Limited Warranty.

Weights & Dimensions

  • Width 14 in
  • Height 14 in
  • Min Clearance to Combustibles 6 in
  • Depth 11-3/4 in
  • Weight 32 lbs

Product Details

  • High Speed Rise °F 57 °F
  • Kilowatts 5 / 3.75 kW
  • Assembly Required Assembled
  • Discharge Horizontal or Vertical
  • Watts Low 3750 W
  • Amps High 12 A
  • Material Steel
  • CFM Low 275 CFM
  • Outlet Connection Type Wiring to Terminal Block in Accordance with NEC & Local Codes
  • Amps Low 10.4 A
  • Voltage 240 / 208 V
  • BTU High 17100
  • BTU Low 6396
  • CFM High 375 CFM
  • Phase 1
  • Watts High 5000 W
  • Brand TPI
  • Manufacturers Part Number HF5605T
  • Color Family 2 Tone Brown & Beige Powder Coat

Warranty

  • Warranty 1 yr

Compliance & Certifications

  • Certifications cETLus
Customer Review

5.0

  • 5 Star

    1
  • 4 Star

    0
  • 3 Star

    0
  • 2 Star

    0
  • 1 Star

    0

Most Recent Reviews

  • Most Recent Reviews
  • Highest Rated Reviews
  • Lowest Rated Reviews
  • Reviewer: Anonymous

    Date: December 13, 2013

    TPI Heater
    Your review:
    Very good product; dependable when you need it the most. Only down side is they do not keep them on the shelf so lead time is usually a little longer than you would like it to be while they build to fill the order.
Product Q & A

There are 1 questions and 1 answer for this product.

  • Do these types of heaters have a filter? We have 4 or 5 of these heaters in common areas of Coast Village and they seem to need to be cleaned?

    Question Asked By: Nancy, November 11, 2016

    Answer This Question

    Question Answered By:

    • anonymous

      Hello Nancy, No they don’t have a filter but you would be able to blow them out with air such as with an air compressor and wipe them off. Thank you for your interest in our product!

Warranty

This product has a 12-month manufacturer's limited warranty for parts and a 12-month manufacturer's limited warranty for labor. Protect your purchase beyond the manufacturer's limited warranty.
