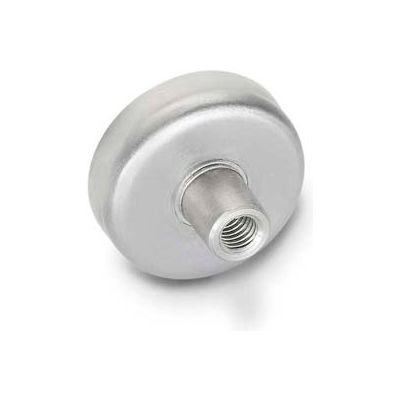

Retaining Magnet Assembly w/ Threaded Bushing - 1.26" Dia. Stainless Steel
Item #: WBB804073
Not Yet Rated
Free Shipping
Enter zip code for delivery date estimate
Shipping to 10465 change
- SELECT
- 0.39
- 0.63
- 0.98
- 1.26
- 1.57
- 2.48
- 3.15
- 3.94
- 4.92
1.26
- SELECT
- Zinc Plated Steel
- Stainless Steel
Stainless Steel
Customers Also Viewed
Retaining Magnet Assembly w/ Threaded Stud and Rubber Jacket - .87" Dia. Zinc Plated Steel
Free Shipping
Retaining Magnet Assembly w/ Threaded Stud and Rubber Jacket - 2.60" Dia. Zinc Plated Steel
Free Shipping on orders $75+ Eligible items will ship for free with a purchase of $75 or more. Some restrictions apply. Click here to learn more.
Master Magnetics Neodymium Swiveling Magnetic Hook 07580 - 65 Lbs. Pull Black Powdered Coat
Free Shipping on orders $75+ Eligible items will ship for free with a purchase of $75 or more. Some restrictions apply. Click here to learn more.
These magnets are a shielded magnetic assembly. Due to the lower magnetic conductivity of the stainless steel housing, the magnetic forces are lower than with steel. Temperature resistant to 390°F (200°C).
Product Specifications
- DESCRIPTIONRetaining Magnet Assembly
- MANUFACTURERS PART NUMBER50.25-HF-32-M5
- NOMINAL PULLING FORCE64 N
- BRANDJ.W. Winco
- BUSHING LENGTH INCHES0.35
- DIAMETER INCHES1.26
- TYPEWith Threaded Bushing
- CONSTRUCTIONStainless Steel
- THREADM5 x .8
- MAGNET CONSTRUCTIONHard Ferrite SrFe (HF type)
- COUNTRY OF ORIGINImport
- BODY THICKNESS INCHES0.28
There are no questions for this product.
Retaining Magnet Assembly w/ Threaded Bushing - 1.26" Dia. Stainless Steel
$11.25
