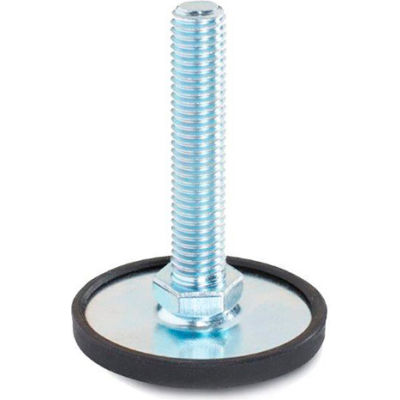

Leveling Foot - Threaded - 2250 Lbs. Capacity - 2.36" Base Dia. - J.W. Winco 40-60-3/8X16-150-A1-S
Item #: WBB2253507
Not Yet Rated
Enter zip code for delivery date estimate
Shipping to 10465 change
- SELECT
- 3/8-16
- 5/8-11
- 1/2-13
3/8-16
- SELECT
- 2250 Lbs.
- 2700 Lbs.
2250 Lbs.
Customers Also Viewed
Leveling Foot - Threaded - 2250 Lbs. Capacity - 2.36" Base Dia. - J.W. Winco 40-60-3/8X16-150-A1-S
GN40 Leveling feet are simple, economically priced components. The static load rating of these feet is limited due to the acceptable load rating of the stud (tensile strength 500/mm²). The values given in the table assume a straight compressive load, perpendicular to the foot. The bending and buckling stress factors often found in the actual application reduce the load rating of the stud, and must be compensated for accordingly. To insure proper leveling mount size, divide the machine weight by the number of feet required. This will equal the pounds or load per leveling foot.
GN40 Leveling feet are simple, economically priced components. The static load rating of these feet is limited due to the acceptable load rating of the stud (tensile strength 500/mm²). The values given in the table assume a straight compressive load, perpendicular to the foot. The bending and buckling stress factors often found in the actual application reduce the load rating of the stud, and must be compensated for accordingly. To insure proper leveling mount size, divide the machine weight by the number of feet required. This will equal the pounds or load per leveling foot.
Product Specifications
- BASE DIAMETER2.36"
- BASE HEIGHT0.10"
- BRANDJ.W. Winco
- CONSTRUCTIONSteel
- DESCRIPTIONLeveling Foot w/ Clip-On Rubber Cap
- MANUFACTURERS PART NUMBER40-60-3/8X16-150-A1-S
- TYPEThreaded
- THREADED STUD & HEX NUTZinc Plated Steel w/ Blue Passivated Finish
- UNIT OF MEASUREMENTInch (Imperial)
- LOAD CAPACITY RANGE (LBS.)1000 - 2500 Lbs.
- LOAD CAPACITY (LBS.)2250 Lbs.
- THREAD3/8-16
- SERIESGN40
- COUNTRY OF ORIGINImport
- STUD LENGTH5.91"
