For use on pumps designed for fire pump duty and installed per NFPA-20. These Dripproof motors are intended for installation in relatively clean and dry environments. Fire Pumps motors are not recommended for use with variable frequency drives.

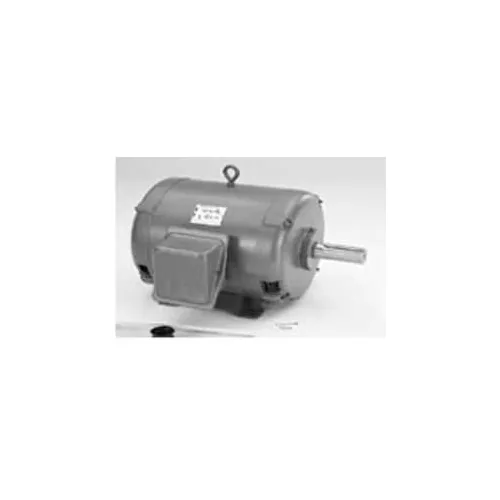

Marathon Motors Fire Pump Motor, U536, 200HP, 460V, 3600RPM, 3PH, 444TS FR, DP
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$20,499.00
1
1
Free Shipping Ships in 7 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Weight | 1313 lbs |
| Opposite End Bearing Size | 6313 |
| Dimension C | 34 in |
| Drive End Bearing Size | 6313 |
Product Details
| 60 Hertz kW | 149 kW |
| 50 Hertz Horsepower | 150 HP |
| 50 Hertz SF | 1.15 |
| KVA Code | F |
| Motor RPM 50 Hertz | 3000 rpm |
| IP Code | 12 |
| 60 Hertz RPM | 3600 rpm |
| Motor RPM 60 Hertz | 3600 rpm |
| 50 Hertz Voltage | 380 V |
| 50 Hertz FLE | 94.50 Percent FLE |
| Mounting Location | Rigid |
| Phase | 3 |
| Manufacturers Part Number | U536 |
| Enclosure | DP |
| 50 Hertz Full Load Amps | 200 FLA |
| Service Factor | 1.15 |
| Bearing Drive End | 6313 |
| Brand | Marathon Motors |
| 50 Hertz Kilowatts | 112 kW |
| RPM | 3,600, 3,000 rpm |
| Insulation Class | B |
| Horsepower | 200 HP |
| Orientation | Horizontal |
| Frame | 444TS |
| Starting Type | PWS & YDRUN |
| Enclosure Type | Open/Drip Proof |
| Voltage | 460 V |
| Full Load Efficiency | 95 |
| Full Load Amps | 220 FLA |
| Duty | Continuous |
| Ambient Temperature | 50 °C |
| RPM Range | 3001-3600 rpm |
Compliance & Certifications
| CSA Certified | Y |
| CE Approved | Y |
| NEMA Design | B |
| UL | UL Listed |
