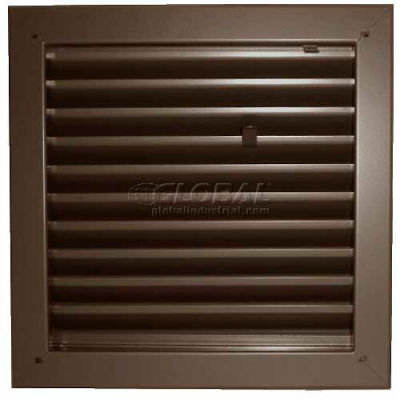

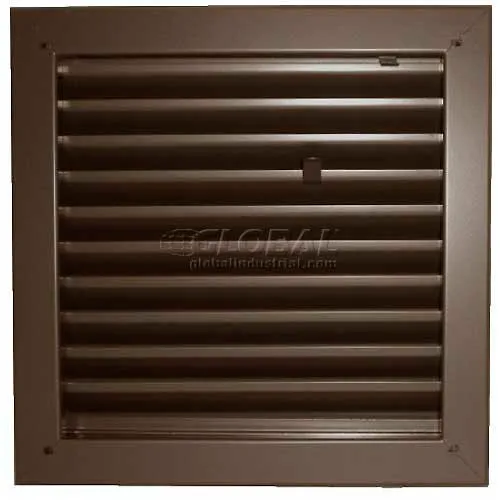

Fire-Rated Door Louver 1900A1212B, Adjustable Z-Blade, Self-Attach, 12" X 12", Bronze

Adjustable Z-Blade Louver with Fusible Link activated at 165 Degrees F is Ideal for Use in Fire Doors up to 1-1/2 Hour Rating. The Self-Attaching Frame Style is Ideal for Installation in Existing Door Cutouts.

Material: 16 gauge CRS frame and louver blades. Min size 10" x 6", Max 24" x 24".

Construction: Louver: Z-blade louver is riveted to the operating bar and frame at 1" intervals to welded 1-9/16" deep frame. Mechanical Stop holds blades open. Frame: Mitered and welded corners: screws fastened through prepared frame into louver core leaving corridor side of frame free of fasteners.

Operation: Adjustable blades of 16 gauge CRS pivot on cadmium-plated steel rivets. The blades are operated by a manual adjusting lever. A spring loaded fusible link mechanism is incorporated into the design; upon melting of the link, the action bar is actuated, thereby closing and locking all of the blades.

Weights & Dimensions

  • Rough Opening 12 x 12 in
  • Min Size 10 X 6 in
  • Max Size 24 X 24 in
  • Fits Door Thickness For 1-3/4 Door in

Product Details

  • Blade Type Adjustable Z-Blade
  • Description Fire-Rated Door Louver
  • Indoor/Outdoor Interior
  • Brand Air Louvers
  • Series 1900A
  • Material 16 Gauge CRS Frame & Louver Blades
  • Fasteners #8 X 3/4" Phillips Flathead
  • Manufacturers Part Number 1900A 1212B
  • Color Family Bronze Powder Coated

Compliance & Certifications

  • Fire Rating WHI Fire Door Testing Up to 2-1/2 Hours
