Raychem® Fixed Point Thermostat (40F) AMC-F5

Raychem® Fixed Point Thermostat (40F) AMC-F5

Item #: WBB49355

(1)

Free Shipping

Ships in One Business Day ? Items ship from warehouse within one business day (Mon. - Fri. excluding holidays). Transit times are determined by shipping method and destination.

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $312.95

Save $15.65 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Raychem® Splice and Tee Kit (Waterproof) H910

Raychem® Splice and Tee Kit (Waterproof) H910

Raychem® Hardwire Power Connection Kit H900

Raychem® Hardwire Power Connection Kit H900

Raychem® Gel Filled End Seal Kit (2 each) H912

Raychem® Gel Filled End Seal Kit (2 each) H912

Raychem® Application Tape and Labels (66 ft roll) H903

Raychem® Application Tape and Labels (66 ft roll) H903

Frost King Roof Cable De-Icer 120V 120'L

Frost King Roof Cable De-Icer 120V 120'L

Free Shipping

Raychem®  WinterGard Wet® Heat Cable H612050, 50 Ft. box 6-Watt 120V

Raychem® WinterGard Wet® Heat Cable H612050, 50 Ft. box 6-Watt 120V

Free Shipping

Raychem®  WinterGard Plus® Heat Cable H611050, 50 Ft. box 6-Watt 120V

Raychem® WinterGard Plus® Heat Cable H611050, 50 Ft. box 6-Watt 120V

Free Shipping

Raychem® FrostGuard™ Preassembled Heat Cable FG1-36P, 36 Ft. 120V

Raychem® FrostGuard™ Preassembled Heat Cable FG1-36P, 36 Ft. 120V

Free Shipping

Raychem® FrostGuard™ Preassembled Heat Cable FG1-50P, 50 Ft. 120V

Raychem® FrostGuard™ Preassembled Heat Cable FG1-50P, 50 Ft. 120V

Free Shipping

Raychem® FrostGuard™ Preassembled Heat Cable FG1-24, 24 Ft. 120V

Raychem® FrostGuard™ Preassembled Heat Cable FG1-24, 24 Ft. 120V

Free Shipping

Raychem® FrostGuard™ Preassembled Heat Cable FG1-12P, 12 Ft. 120V

Raychem® FrostGuard™ Preassembled Heat Cable FG1-12P, 12 Ft. 120V

Free Shipping

Raychem® FrostGuard™ Preassembled Heat Cable FG1-75P, 75 Ft. 120V

Raychem® FrostGuard™ Preassembled Heat Cable FG1-75P, 75 Ft. 120V

Free Shipping

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Fixed Point Thermostat (40F).

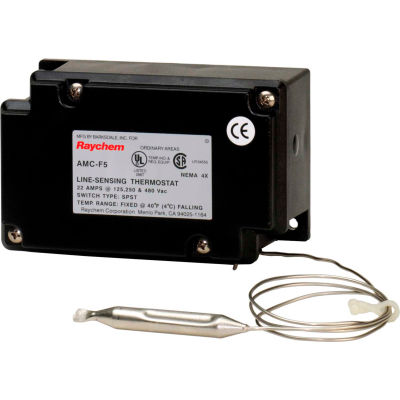

This Freezgard® AMC-F5 thermostat is designed to control heat-tracing systems used for freeze protection in non hazardous locations. The thermostat has a fixed set point of 40°F (4.4°C) and can be used in ambient-sensing mode (with sensor in air) or line-sensing mode (with sensor placed on pipe or tank wall). It can be used to control a single heat tracing circuit or as a pilot control of a contactor switching multiple heat-tracing circuits. Made in the USA.

Weights & Dimensions

  • Width 2-1/2 in
  • Height 5-1/4 in
  • Length 3-1/4 in

Product Details

  • Brand Raychem
  • Voltage 480 / 250 / 125 V
  • Description Fixed Point Thermostat (40F)
  • Manufacturers Part Number AMC-F5

Warranty

  • Warranty 2 yr

Compliance & Certifications

  • Certifications UL Listed, CSA Certified
Customer Review

4.0

  • 5 Star

    0
  • 4 Star

    1
  • 3 Star

    0
  • 2 Star

    0
  • 1 Star

    0

Most Recent Reviews

  • Most Recent Reviews
  • Highest Rated Reviews
  • Lowest Rated Reviews
  • Reviewer: Anonymous

    Date: January 20, 2014

    Het trace control
    Your review:
    Great price works well also
Product Q & A

There are 1 questions and 1 answer for this product.

  • The directions say to attach T-stat bulb to pipe with AT-180 aluminum tape.Will reg aluminum tape work?

    Question Asked By: RANDALL, January 23, 2016

    Answer This Question

    Question Answered By:

    • Product Expert, January 23, 2016

      Not sure of the properties of regular tape. Properties of the tape in the directions: 1.Tape shall consist of soft aluminum alloy #1145-0 or 8011-0 tape with special transparent synthetic acrylic adhesive. 2.Adhesion to Steel: 55 oz /inch width nominal 3.Tensile Strength: 30 lbs. / inch width nominal 4.Backing Thickness: 0.003 inch 5.Tape Thickness: 0.005 inch 6.Elongation: 5 % nominal 7.Water Vapor Transmission Rate: .1g H2O / 100 in2 / 24 hrs. nominal 8.Minimum Installation Temperature: 32ºF (0ºC) 9.Withstand Temperature Range: -65ºF to 300ºF (-54ºC to 149ºC) 10.Flame Resistant: Meets UL Class "L" Low Flammability Rating

Warranty

This product has a 24-month manufacturer's limited warranty for parts and a 24-month manufacturer's limited warranty for labor. Protect your purchase beyond the manufacturer's limited warranty.
