FULLY POWERED COUNTER BALANCED STACKER
Counter Balance Design is ideal for Die Loading and Machine Feeding.
This Lift Truck is perfect for approaching racks and trucks, as there are no outriggers or straddle legs that would obstruct a close approach. High-torque 24V DC 0.7 KW drive and 2.0 KW lift motors offer 3-4 hours of operation at full charge or 8 hours when used intermittently. Ergonomic handle features a throttle with an infinite adjustment of forward/reverse speeds, lift/lower controls, auto-reverse safety belly button switch and horn. Counter-balanced Stacker has an electromagnetic disc brake with an automatic dead-man feature that activates when the user releases the handle. Truck includes (2) 12V 95AH lead acid deep cycle batteries, integral battery charger and battery level gauge. 30"L x 3-¼"W forks offer 15" load center and adjust from 6-¼" to 23-½" O.D. Stacker rolls smoothly on 10" dia. polyurethane steer and 6-¼" dia. polyurethane load wheels. 90 Day Limited Warranty.
Note: The Overall Height of the Stacker Mast at the Maximum 118" Lift Height is 135-1/2" High.
Dock required for Delivery.
Counter Balance Design is ideal for Die Loading and Machine Feeding.
This Lift Truck is perfect for approaching racks and trucks, as there are no outriggers or straddle legs that would obstruct a close approach. High-torque 24V DC 0.7 KW drive and 2.0 KW lift motors offer 3-4 hours of operation at full charge or 8 hours when used intermittently. Ergonomic handle features a throttle with an infinite adjustment of forward/reverse speeds, lift/lower controls, auto-reverse safety belly button switch and horn. Counter-balanced Stacker has an electromagnetic disc brake with an automatic dead-man feature that activates when the user releases the handle. Truck includes (2) 12V 95AH lead acid deep cycle batteries, integral battery charger and battery level gauge. 30"L x 3-¼"W forks offer 15" load center and adjust from 6-¼" to 23-½" O.D. Stacker rolls smoothly on 10" dia. polyurethane steer and 6-¼" dia. polyurethane load wheels. 90 Day Limited Warranty.
Note: The Overall Height of the Stacker Mast at the Maximum 118" Lift Height is 135-1/2" High.
Dock required for Delivery.
Product Details
- Drive Motor 0.7 KW kW
- Assembly Required Assembled
- Charger 15 amp / 120V
- Type Counter Balanced
- Material Steel
- Wheel Type Polyurethane
- Lift Motor 2.0 KW
- Batteries (2) 12V / 95AH
- Duty Cycle per Charge 3 to 4 Hours; 8 Hours Intermittent Use
- Brand Vestil
- Warranty 90 days
- Power Battery Operated
- Manufacturers Part Number S-CB-118
- Color Family Black
- Mast Style Telescopic
Weights & Dimensions
- Wheel Diameter 6-1/4 Front; 10 Rear in
- Width 33 in
- Turning Radius 44-1/2 in
- Length 78 in
- Overall Fork Width 6-1/4 to 23-1/2 (adjustable) in
- Fork Width 3-1/4 in
- Travel Speed 3.2 mph
- Height 78 in
- Lowered Height 2 in
- Fork Length 30 in
- Load Center 15 in
- Lift Speed 20 ft/min
- Weight Capacity 1000 from 0" to 62"H; 500 from 62" to 118"H lbs
- Raised Height 118 in
- Weight 1992 lbs
⚌
Photo/Video Gallery
-

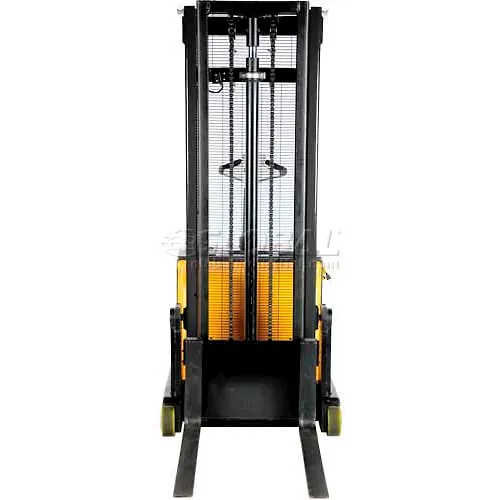

Vestil Fully Powered Counter Balanced Stacker S-CB-118 1100 Lb. Capacity
-
![Fully Powered Counter Balanced Stacker 1000 Lb Capacity]()
-
![Fully Powered Counter Balanced Stacker 1000 Lb Capacity]()
-
![Fully Powered Counter Balanced Stacker 1000 Lb Capacity]()
Customer Review
Most Recent Reviews
- Most Recent Reviews
- Highest Rated Reviews
- Lowest Rated Reviews
-
Reviewer: Anonymous
Date: May 15, 2012
-
Reviewer: Anonymous
Date: November 03, 2011
Your review:
After I ordered machine on line, I decided that I wanted to purchase the extended warranty plan and the unit had not been delivered yet. I was told it was to late, di not feel that was fair after spending all that money you will not let us purchase the warrany.
Product Q & A
There are 2 questions and 2 answers for this product.
-
I have an indoor ceiling height of 10 feet. I saw that the overhaul height is 118", my question is at what height are the tines when the lift is fully extended
Question Asked By: Richard Weichsler, October 25, 2019
Answer This Question
Question Answered By:
-
Product Expert, October 28, 2019
Hello Richard, the 118" raised height specification refers to the highest height the fork tines can be raised. Thank you for your question.
-
-
What is the turning radius?
Question Asked By: Patrick, December 18, 2015
Answer This Question
Question Answered By:
-
Product Expert, December 18, 2015
44-1/2"
-
