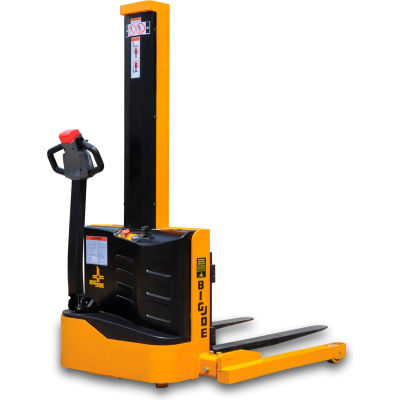

Big Joe® S22 Fully Powered Straddle Stacker 2200 Lb. 62" Lift Forks Inside

Big Joe® S22 Fully Powered Straddle Stacker 2200 Lb. 62" Lift Forks Inside

Item #: WB987104

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Frequently Purchased Together

  • Big Joe® S22 Fully Powered Straddle Stacker 2200 Lb. 62" Lift Forks Inside
  • Global Industrial™ Blue LED Pedestrian Safety Warning Forklift Spotlight

    $77.95

    Free Shipping

  • Global Industrial™ High-Profile Amber LED Permanent Mount Forklift Strobe Light 12 to 110 Volts

    $51.95

Price: $7,046.00

$1,174.33/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Global Industrial™ Blue LED Pedestrian Safety Warning Forklift Spotlight

Global Industrial™ Blue LED Pedestrian Safety Warning Forklift Spotlight

Free Shipping

Static Solutions Ultimat™ I Anti Static Mat .080" Thick 2' x 4' Black

Static Solutions Ultimat™ I Anti Static Mat .080" Thick 2' x 4' Black

Big Joe® S22 Fully Powered Straddle Stacker 2200 Lb 116" Lift Forks Inside

Big Joe® S22 Fully Powered Straddle Stacker 2200 Lb 116" Lift Forks Inside

Big Joe® CB22 Fully Powered Counterbalanced Lift Truck 2200 Lb. 104" Lift

Big Joe® CB22 Fully Powered Counterbalanced Lift Truck 2200 Lb. 104" Lift

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Global Industrial™ Adjustable Height C-Channel Leg Workbench W/ Maple Sq. Edge, 60"L x 30"W

Global Industrial™ Adjustable Height C-Channel Leg Workbench W/ Maple Sq. Edge, 60"L x 30"W

Global Industrial™ Strapping Kit w/ Tensioner/Crimper/Seals & Cart, 9000'L x 1/2" Strap Width

Global Industrial™ Strapping Kit w/ Tensioner/Crimper/Seals & Cart, 9000'L x 1/2" Strap Width

Global Industrial™ LED Forklift "Red Zone" Side-Mount Pedestrian Safety Warning Light

Global Industrial™ LED Forklift "Red Zone" Side-Mount Pedestrian Safety Warning Light

Free Shipping

Global Industrial™ High-Profile Amber LED Permanent Mount Forklift Strobe Light 12 to 110 Volts

Global Industrial™ High-Profile Amber LED Permanent Mount Forklift Strobe Light 12 to 110 Volts

Global Industrial™ Forklift Fork Tine Extension 4"W x 60"L - Pair

Global Industrial™ Forklift Fork Tine Extension 4"W x 60"L - Pair

Comfort Zone® Deluxe Oil Filled Radiator, 1500 Watt, 120V

Comfort Zone® Deluxe Oil Filled Radiator, 1500 Watt, 120V

Big Joe® FULLY POWERED STRADDLE STACKER

Self-Propelled Powered Lift Truck is Easy to Use and Maintain.

The Big Joe® Straddle Stacker is a good choice for general material handling, stacking and work positioning. Battery operated truck offers a tight 52-½" turning radius that eases maneuverability in confined aisles. 2.4KW lift motor raises loads 17.8 ft./min. loaded and 33.5 ft./min. unloaded. Stacker travels at 2.5 mph loaded and 3.4 mph unloaded using a 0.75KW drive motor. Self-propelled Lift Truck features 42"L x 3-½"W forks and a 24" load center. Unit includes (2) 12V / 85AH maintenance-free batteries, battery discharge gauge and an integral 15A 120V charger. Ergonomic handle controls speed and lift with left or right hand, and offers auto-reverse safety belly button switch. 2 Year Limited Warranty.

This unit features Forks Inside Adjustable Straddle Legs that are adjustable from 8"I.D. to 27-½" O.D., ideal for Pallets or Skids.

Dock required for Delivery.

Weights & Dimensions

  • Width 44 to 56 in
  • Length 61-13/16 in
  • Overall Fork Width 8 to 27-1/2 (adjustable) in
  • Fork Width 3-1/2 in
  • Travel Speed 2.5 Loaded; 3.4 Unloaded mph
  • Height 76-3/8 in
  • Lowered Height 2-1/2 in
  • Fork Length 42 in
  • Load Center 24 in
  • Straddle Leg Width 38 to 50 I.D.; 46 to 58 O.D. in
  • Lift Speed 17.8 Loaded; 33.5 Unloaded ft/min
  • Weight Capacity 2200 lbs
  • Raised Height 62 in
  • Weight 1190 lbs

Product Details

  • Drive Motor 0.75 KW kW
  • Assembly Required Assembled
  • Charger 15 amp / 120V
  • Type Forks Inside Adjustable Straddle Legs
  • Material Steel
  • Wheel Type Polyurethane
  • Lift Motor 2.4 KW
  • Batteries (2) 12V / 85AH
  • Duty Cycle per Charge 4.5 Hours Continuous Use
  • Brand Big Joe
  • Warranty 2 yr
  • Power Battery Operated
  • Manufacturers Part Number S22-62
  • Color Family Black
  • Mast Style Non-Telescopic
