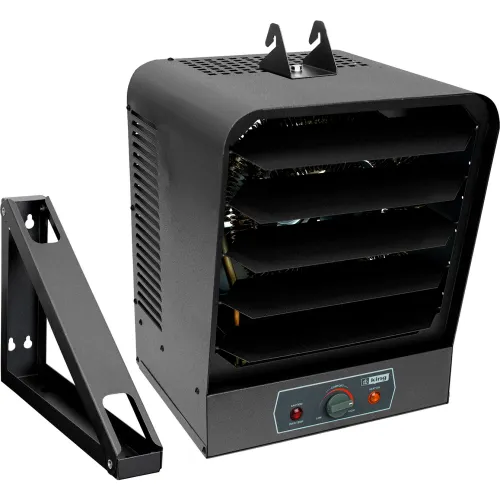

King Electric Garage Heater GH2405TB with Bracket and Thermostat 240V 5KW 1 PH
The GH compact heavy duty unit heater is designed for use as primary or supplemental heat sources in large or exposed areas including commercial stores, workshops, barns, storage sheds, and garages to prevent freezing. Spiral finned steel elements and high air volume (CFM) ensure efficient heat exchange producing a cooler element operation while prolonging heater life. By combining the highest quality components with a dynamically balanced fan blade, the GH unit heater will provide years of trouble-free service. Includes both a power light indicator and a red caution light that illuminates if the heater stops due to the over temperature limit tripping. A universal wall/ceiling bracket provides quick and simple installation. The built-in thermostat turns the heater on and off to maintain the desired room temperature or a remote wall thermostat can be used. Patented smart limit protection disconnects elements and motor in the event normal operating temperatures are exceeded. The heater is prewired to easily convert from the built-in thermostat to a wall mounted line voltage thermostat. The heater can also be controlled by purchasing a transformer relay to operate a remote 24V wall thermostat.
The GH compact heavy duty unit heater is designed for use as primary or supplemental heat sources in large or exposed areas including commercial stores, workshops, barns, storage sheds, and garages to prevent freezing. Spiral finned steel elements and high air volume (CFM) ensure efficient heat exchange producing a cooler element operation while prolonging heater life. By combining the highest quality components with a dynamically balanced fan blade, the GH unit heater will provide years of trouble-free service. Includes both a power light indicator and a red caution light that illuminates if the heater stops due to the over temperature limit tripping. A universal wall/ceiling bracket provides quick and simple installation. The built-in thermostat turns the heater on and off to maintain the desired room temperature or a remote wall thermostat can be used. Patented smart limit protection disconnects elements and motor in the event normal operating temperatures are exceeded. The heater is prewired to easily convert from the built-in thermostat to a wall mounted line voltage thermostat. The heater can also be controlled by purchasing a transformer relay to operate a remote 24V wall thermostat.
Weights & Dimensions
- Width 12-1/2 in
- Height 15-1/2 in
- Depth 12 in
- Max Mounting Height 8 ft
- Min Mounting Height 6' Vertical Sidewalls, 6' Above Floor in
- Weight 30.5 lbs
Product Details
- Kilowatts 5 kW
- Discharge Horizontal
- Thermostat Built-In
- Amps High 20.8 A
- Material Steel
- Plug Type Hardwire
- Min Exposure Temperature 40
- Amps Low 18 A
- Voltage 240 V
- Description Wall or Ceiling Mount
- BTU High 17000
- Temperature Rise 40 °F
- Includes Heater, Bracket
- Motor Type Totally Enclosed Fan Motor
- Phase 1
- CFM High 400 CFM
- Watts High 5000 W
- Max Exposure Temperature 90
- Brand King Electric
- Manufacturers Part Number GH2405TB
- Color Family Gray
Warranty
- Warranty 3 yr
Compliance & Certifications
- Certifications cULus
Customer Review
Product Q & A
There are no questions for this product.
Warranty
This product has a 36-month manufacturer's limited warranty for parts and a 36-month manufacturer's limited warranty for labor. Protect your purchase beyond the manufacturer's limited warranty.
