Baldor-Reliance General Purpose Motor, 230/460 V, 0.5 HP, 1740 RPM, 3 PH, 56C, TENV

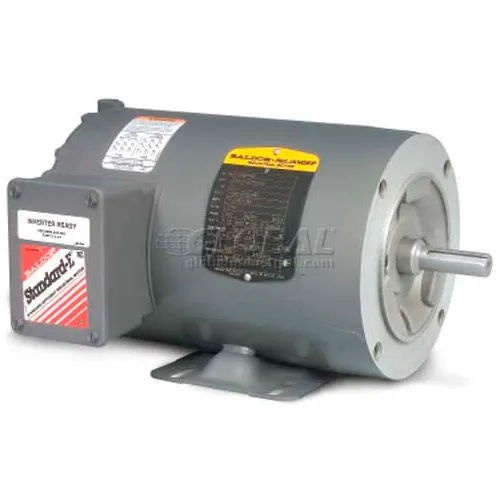

Actual product may differ from image shown

Baldor-Reliance General Purpose Motor, 230/460 V, 0.5 HP, 1740 RPM, 3 PH, 56C, TENV

Item #: WBB910205

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$536.00 up to 26% OFF

Price: $394.95

Save $19.75 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Baldor-Reliance General Purpose Motor, 230/460 V, 0.5 HP, 1740 RPM, 3 PH, 56C, TENV

Baldor-Reliance's extensive line of General Purpose motors are available in Open Drip-proof and TEFC construction in both single and three phase. Horsepower sizes available from stock range from 1/12 HP through 1500 HP. Designed for general purpose use means that these motors can be used in applications which include compressors, pumps, fans, conveyors, material handling, machine tools and many others.

Features
  • Pressure cast aluminum end plates with ribbed design for rigidity
  • Ball bearings
  • Locked drive end bearing
  • Heavy gauge steel frame
Application(s)
  • Pumps, fans, conveyors, machine tools, gear reducers.


  • HORSEPOWER 1/2
  • ENCLOSURE TENV
  • FRAME 56C
  • MOUNTING C-Face Rigid
  • NAMEPLATE RPM 1740
  • PHASE 3
  • MOTOR RPM 60Hz 1740
  • VOLTAGE 230/460
  • HERTZ 60
  • DUTY Continuous
  • SERVICE FACTOR 1.15
  • AMBIENT TEMP C 40
  • RPM RANGE 1701-1800
  • SPEC. NUMBER 35E012P863G1
  • TYPE General Purpose Motor
  • C-DIMENSION INCHES 11.06
  • POWER-FACTOR 69
  • BALDOR CATALOG NUMBER CNM3538/35
  • ENCLOSURE TYPE Totally Enclosed
  • is_motor Yes
  • MANUFACTURER PART # CNM3538/35
  • BRAND Baldor-Reliance
  • 208V AMPS --
  • KVA-CODE M
  • FL AMPS 1.6/.8
  • INSULATION CLASS F
  • FL EFFICIENCY 80
  • BEARING-OPP-DRIVE-END 6203
  • BEARING-DRIVE-END 6205
  • DESIGN CODE B
