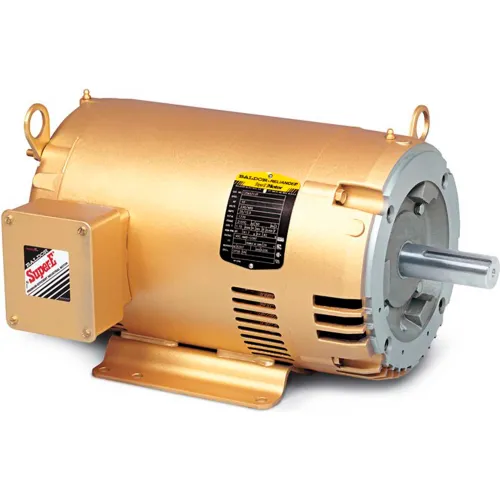

Baldor-Reliance General Purpose Motor, 230/460 V, 3 HP, 1765 RPM, 3 PH, 182TC, OPSB

Baldor-Reliance's extensive line of General Purpose motors are available in Open Drip-proof and TEFC construction in both single and three phase. Horsepower sizes available from stock range from 1/12 HP through 1500 HP. Designed for General purpose use means that these motors can be used in applications which include compressors, pumps, fans, conveyors, material handling, machine tools and many others. Features Heavy gauge steel and cast iron frames Ball bearings ISR® (Inverter Spike Resistant®) copper windings Low-loss electrical grade lamination steel Three year warranty Application(s) ...

General Purpose, 3-Phase Motor: 7.5HP, 1765/1460 RPM, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, 213 Frame, Rigid C Mount, 208-230/460V, 3PH, 60/50HZ, Name Plate Amps 22.4-21.6/10.8&24.8/12.4, Continuous duty, 1.25 Service Factor, Automatic thermal protection, Efficiency: 91.7, Efficiency Type: NEMA Premium, Ambient 40 C, Reverse Rotation, Shaft Length 3", Shaft Diameter 1 3/8". Totally enclosed fan cooled (TEFC) enclosure has no vent openings, and is tightly enclosed to prevent the free exchange of air, but is not airtight. An external fan is an integral part of the motor and provides ...

General Purpose, 3-Phase Motor: 10/7.5HP, 1765/1470 RPM, Drip-Proof (DP) Enclosure, 215 Frame, Rigid Mount, 208-230/460V, 3PH, 60/50HZ, Name Plate Amps 28.5-25.6/12.8&22.8//11.4, Continuous duty, 1.25 Service Factor, No thermal protection, Efficiency: 91.7, Efficiency Type: NEMA Premium, Ambient 40 C, Reverse Rotation, Shaft Length 3. Drip proof (DP)enclosure has vents in end shield and/or frame to prevent drops of liquid from falling into motor within a 15 degree angle from vertical. Designed for use in areas that are reasonably dry, clean, and well ventilated (usually indoors). If ...

Metric(IEC), B3 Footed Motor: 7.5HP, 1765/1455 RPM, Weatherproof (IP55) Enclosure, 132 Frame, B3, 230/460V, 3PH, 60/50HZ, Name Plate Amps 19.8/9.9&22.4/11.2, Continuous duty, 1.15 Service Factor, No thermal protection, Efficiency: 89.5, Efficiency Type: Standard, Ambient 40 C, Reverse Rotation. Meets North American performance standards and EPACT energy efficiency mandates. Features 1.15 service factor and B3 footed mounting. Typically used for replacement on machine tools, textile machinery and other equipment with metric dimensions but requiring the heavy-duty torque and performance of ...

Baldor-Reliance's extensive line of General Purpose motors are available in Open Drip-proof and TEFC construction in both single and three phase. Horsepower sizes available from stock range from 1/12 HP through 1500 HP. Designed for General purpose use means that these motors can be used in applications which include compressors, pumps, fans, conveyors, material handling, machine tools and many others. Features Heavy duty frames Ball bearings Moisture resistant ISR® (Inverter Spike Resistant) copper windings Low-loss electrical lamination grade steel Three year warranty Application(s) ...
