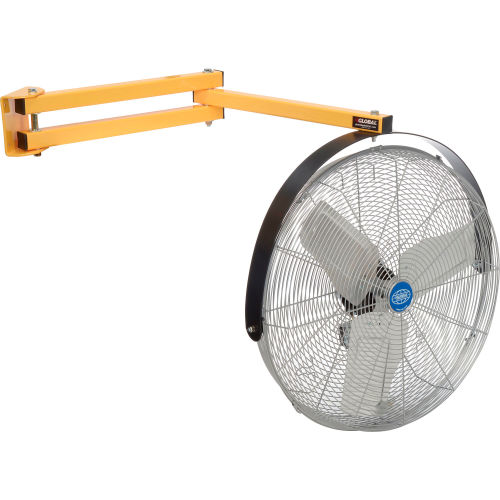

Global Industrial™ 24" Double Arm Loading Dock Fan, 8,000 CFM

Product Description
✓ Moves up to 8000 CFM of air
✓ 2-Speed 1/3 HP Open Air Over motor
✓ 40" articulating arms for precise airflow placement

The Global Industrial™ 24" Double-Arm Loading Dock Fan allows you to put fresh air precisely where you need it to help ventilate & cool tight spaces. It is powered by a 2-speed 1/3 HP open air over motor with three aluminum fan blades that move up to 8000 CFM of air at 1100 rpm to circulate fresh air into trailers, pick modules, and on loading docks. It has a 10' long power cord that helps to eliminate or minimize the need for extension cords. The sturdy yoke mount enables the fan assembly to tilt & rotate 360° vertically & horizontally and the yoke is attached to a 40" double-articulating arm that work together to direct the airflow exactly where you need it. The arm & yoke are finished with a corrosion- & scratch-resistant powder coat to give the assembly a long service life in harsh conditions. UL, cETL Listed, OSHA-approved & UL507-certified. Limited 1-Year Warranty.
  • Two selectable speeds: 5900 and 8000 CFM
  • Sturdy wall mount bracket with pre-drilled bolt holes
  • Adjustable friction pivot maintains position when released
  • Simple on/off/speed selector pull chain
  • Chrome wire guards protect blades for safety
  • 3-prong grounded plug for 115V AC wall outlet
  • Operates at 65 dB
  • Some assembly required
  • PRICE
    $399.95

    1
    1
    Ships within 1 Business Day
    Add or Change Zip Code(s)
    Easy online or call-in returns. Read return policy

    Weights & Dimensions

    Length40 in
    Width29 in
    Depth10 in
    Height32 in
    Weight48 lbs
    Cord Length10 ft
    Fan Diameter24 in

    Product Details

    Assembly RequiredYes
    Max Ambient Temperature104 °F
    Number of Speeds2
    Fan TypeIndustrial
    Number of Blades3
    For Use WithGeneral Cooling, Truck Cooling, Pick Modules Tight Spaces
    Motor TypeOpen Air Over
    Mounting LocationWall
    Wattage228 W
    MaterialMetal
    Phase1
    Blade TypeAluminum
    Manufacturers Part Number292747
    Indoor/OutdoorIndoor
    BrandGlobal Industrial
    RPM1100 rpm
    TypeDock Fan
    CFM5900/8000 CFM
    Horsepower1/3 HP
    ColorSilver
    Amperage1.9 A
    Hertz60 Hz
    RPM High1,100 rpm
    Voltage120 V
    CFM High8000 CFM
    DescriptionDouble Arm Dock Fan
    Oscillating/Non OscillatingNon Oscillating
    Watts228 W
    Power Cord TypeSJT 3 Conductor
    Decibels65

    Warranty

    Warranty1 yr

    Compliance & Certifications

    CertificationsUL, cUL Listed, OSHA, UL507
