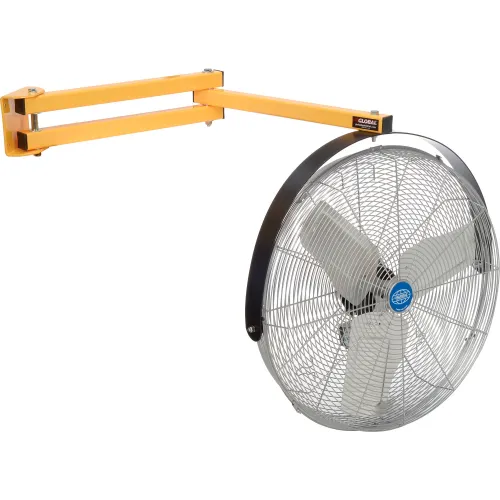

Global Industrial's 24 Inch Double Arm Loading Dock Fan provides an ideal solution for cooling and ventilating loading docks, shipping areas, warehouses, and a variety of industrial applications. The 40 Inch Steel Twin-Strut arms do not sag and extends allowing for a large range of motion to cover a large area of space. The Fan features 2 speed settings with a pull chain control and is powered by a 1/3 HP, 120V single phase motor with a 10' long SJT conductor cord. The fan blades are constructed of Aluminum with double locking guards. Wall bracket and yoke included. UL, cUL listed, and meets OSHA and UL507 Standards. Fan comes with a 2 year limited warranty standard.
Weights & Dimensions
- Weight 48 lbs
- Width 29 in
- Fan Diameter 24 in
- Length 40 in
- Cord Length 10 ft
- Height 32 in
- Depth 10 in
Product Details
- Number of Blades 3
- Number of Speeds 2
- Blade Type Aluminum
- Mounting Location Wall
- Assembly Required Unassembled- Fan with Yoke and Dock Arm
- Amperage 1.9 A
- Type Dock Fan
- For Use With General Cooling, Truck Cooling, Pick Modules Tight Spaces
- Material Metal
- CFM Low 5,900 CFM
- RPM High 1,100 rpm
- Voltage 120 V
- Description Double Arm Dock Fan
- Horsepower 1/3 HP
- CFM High 8000 CFM
- Phase 1
- Motor Type Open Air Over
- Power Cord Type SJT 3 Conductor
- Oscillating/Non Oscillating Non-Oscillating
- Watts 228 W
- Brand Global Industrial
- Max Ambient Temperature 104 °F
- Hertz 60 Hz
- Decibels 65
- Manufacturers Part Number 292747
- Color Family Silver
- Fan Type Industrial
Warranty
- Warranty 1 yr
Compliance & Certifications
- Certifications UL & cUL Listed, OSHA & UL507 Compliant
⚌
