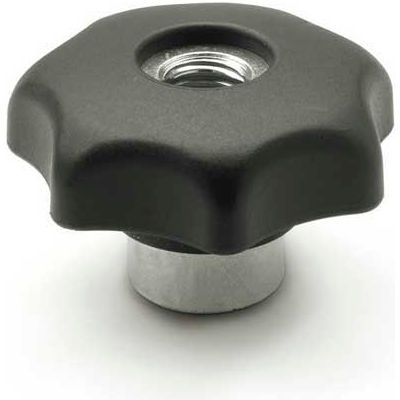

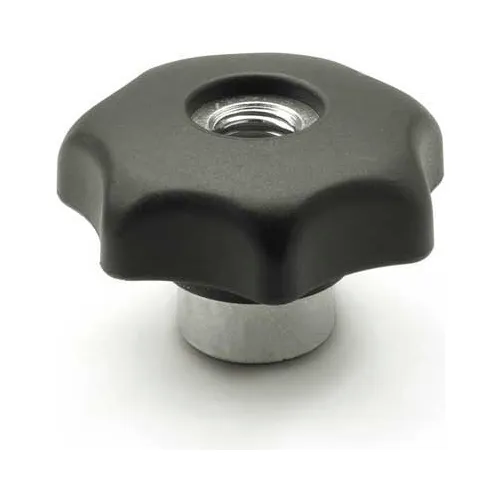

J.W. Winco GN6336.3 Hand Knob, 26"(1.02), 8.4"(.33), M8 x 1.25

J.W. Winco GN6336.3 Hand Knob, 26"(1.02), 8.4"(.33), M8 x 1.25

Item #: WBB1349800

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $8.60

Save $0.43 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

J.W. Winco EN5337.2 Five Lobed Knob, M8 x 1.25, 40"(1.57), 5337.2-40-M8-45-DSW

J.W. Winco EN5337.2 Five Lobed Knob, M8 x 1.25, 40"(1.57), 5337.2-40-M8-45-DSW

Genuine Joe Dust Pan, Lobby Master, PVC Handle, Plastic, 12", Black - GJO85147

Genuine Joe Dust Pan, Lobby Master, PVC Handle, Plastic, 12", Black - GJO85147

J.W. Winco 1.26" Diameter Plastic Hand Knob w/ 1/4"-20 Hole Size 1.21" Hole Depth

J.W. Winco 1.26" Diameter Plastic Hand Knob w/ 1/4"-20 Hole Size 1.21" Hole Depth

Import 2-1/2" Diameter Hand Knob with 1/2-13 Thread, Cast Iron

Import 2-1/2" Diameter Hand Knob with 1/2-13 Thread, Cast Iron

J.W. Winco TIR Nylon T-Bar Knob W/Threaded mm Diameter 57mm Length M6x1.0

J.W. Winco TIR Nylon T-Bar Knob W/Threaded mm Diameter 57mm Length M6x1.0

J.W. Winco BK Steel Ball Knobs Tapped 25.4mm Diameter mm Length 1/4-20

J.W. Winco BK Steel Ball Knobs Tapped 25.4mm Diameter mm Length 1/4-20

J.W. Winco 563.1-40-M6-20 Technopolymer T-Handle W/Threaded Stud mm Diameter 40mm Length M6x1

J.W. Winco 563.1-40-M6-20 Technopolymer T-Handle W/Threaded Stud mm Diameter 40mm Length M6x1

J.W. Winco GN598.1 Nylon Revolving Handle W/Threaded Spindle 28mm Diameter 90mm Length M10x1.5

J.W. Winco GN598.1 Nylon Revolving Handle W/Threaded Spindle 28mm Diameter 90mm Length M10x1.5

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Female Double Swivel Ring - UNC 3/8" - 16

Female Double Swivel Ring - UNC 3/8" - 16

Double Swivel Ring - UNC 1/2" - 13

Double Swivel Ring - UNC 1/2" - 13

Double Swivel Ring - UNC 5/8" - 11

Double Swivel Ring - UNC 5/8" - 11

J.W. Winco GN6336.3 Hand Knob, 26"(1.02), 8.4"(.33), M8 x 1.25

Quick release hand knobs GN 6336.3 are used in such applications where the knob has to be completely removed and refitted very rapidly for re-clamping. The knob is tilted over the threaded spindle. When in position, the knob is brought into a straight position for mating of the two threads on the insert and spindle. The hand knob will then have to be turned only by a fraction of a rotation to achieve clamping. Maximum heat resistance of nylon plastic: 110°C (230°F). Quick release knurled nuts, see GN 6303.1.

Weights & Dimensions

  • Dimension D4 8.4mm(.33) in
  • Dimension D3 16mm(.63) in
  • Dimension H1 26mm(1.02) in
  • Knob Diameter 1.57 in
  • Dimension D1 40mm(1.57) in
  • H3 24mm(.94")
  • Dimension H2 13mm(.51) in

Product Details

  • Type Hand Knob
  • Brand J.W. Winco
  • Hole Size/Thread M8 x 1.25
  • Series GN6336.3
  • Material Aluminum
  • Finish Matte
  • D2 Tapped M8 x 1.25
  • Manufacturers Part Number 6336.3-40-M8
