Features:
- Toggle clamp: Lever arm case-hardened sheet metal (steel C10)
- Zinc plated
- Blue passivated finish Rod is St. 37 steel
- Zinc plated
- Blue passivated finish Base is brass
- black lacquered finish All mobile sections lubricated With special grease Hand grip: High quality
- Oil resistant red plastic Type ASD: Compression occurs With counter-clockwise turn Type ASS: Compression occurs With clockwise turn

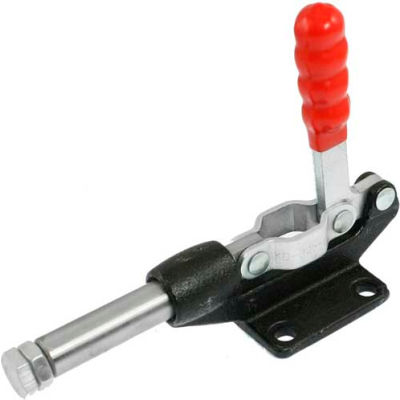

- DESCRIPTION Toggle Clamp
- MATERIAL Steel
- BRAND J.W. Winco
- BASE TYPE Horizontal
- STYLE Push-Pull
- s 10, (.39)
- m1 36.5, (1.44)
- m3 11, (.43)
- m2 33.5, (1.32)
- a 15.5, (.61)
- b 25, (.98)
- d2 THREAD M6 x 1.0
- MANUFACTURERS PART NUMBER 160EVU4/ASS
- h2 46, (1.81)
- d1 11, (.43)
- l1 LENGTH 117, (4.61)
- d3 5.5, (.22)
- l3 32, (1.26)
- h1~ 86, (3.39)
- SIZE REF Size 160
- MAX HOLDING CAPACITY 1300 N
- t 12, (.47)
- SERIES GN 844
- w HUB 30, (1.18)
- l2~ 107, (4.21)
- TYPE Heavy Duty
