Harrington

Model # :WBB440673

MPN #: NER010L-15

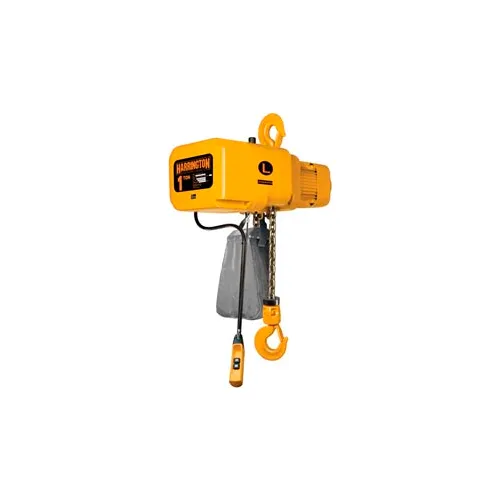

Harrington NER 1 Ton, Electric Chain Hoist W/ Hook Suspension, 15' Lift, 14 FPM, 460V

Product Description
The NER Series of electric chain hoists from Harrington were designed using the latest technology. The results are high quality, low headroom, full-featured hoists that provide daily reliable performance in both routine situations and severe working environments. Features include "The Guardian": Smart Brake Technology, a current driven electromagnetic brake that does not release unless the motor is energized, Grade 80 nickel plated load chain, count hour meter which records and displays the number of lowering starts and hoist on time, 5 pocket load sheave to reduce vibration and extend chain life, cooler motor and brake attributed to the fan cooled motor, low profile upper and lower limit switches and plug in pendant and power supply cords. Hoist are UL listed to UL 1340, built environmentally friendly meeting RoHS requirements and exceed ASME H4 Duty Rating. All Hoist are provided with test certificate verifying hoist has been factory load tested to 125% of rated capacity, in accordance to ASME B30.16.

PRICE
$4,295.00

1
1
Ships in 17 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Weight Capacity2000 lbs
Weight109 lbs
Control Cord Length11 ft
Head Room16-7/8 in
Lift15 ft
Lift Speed14 ft/min

Product Details

Assembly RequiredYes
TypeChain Hoist
Horsepower1-3/16 HP
ColorYellow
Number of Speeds1
SeriesNER
Hertz60 Hz
ClutchFriction
Voltage460 V
Trolley ConfigurationHook Mount
Control110V Push Button Control Pendant
MaterialDie-Cast Aluminum Body
Phase3
BrakeDC Current
Manufacturers Part NumberNER010L-15
Operating Conditions-4°F to 104°F
BrandHarrington

Warranty

Warranty10 yr
