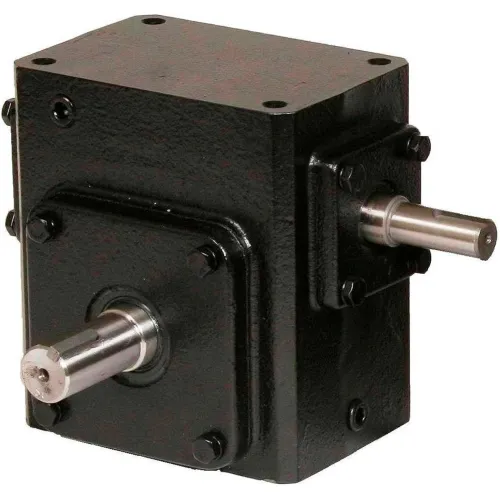

Cast Iron Worm Gear Reducer, Box Size 133, 40:1 Ratio, Shaft Input, Left Hand Output, 56 Frame

Image is for representational purposes only. Actual product may vary. Please refer to the specifications below for product details.

WorldWide Electric offers cast iron, aluminum, and stainless steel worm gear reducers. Worm gear reducers are among the most compact and least expensive options among gear reducers, used to reduce input rotational speed and increase output torque.

Cast Iron Worm Gear Reducers are available in center distances 1.33 - 3.25 inches in ratio's from 5:1 to 60:1. The units have a one piece #Fc20 all cast iron housing, NEMA motor quill style input flanges or shaft inputs, come pre-filled with synthetic oil and have a 1 year warranty.

Features:

Tapered roller bearings on the input and output shafts

Embedded double-lip oil seals

Anti-rust primer applied inside and outside of the gearbox

Air dry special black paint

Input Type: Shaft Input

Output Type: Left Hand
