Features:
- Tapered roller bearings on the input and output shafts
- Embedded double-lip oil seals
- Anti-rust primer applied inside and outside of the gearbox
- Air dry special black paint

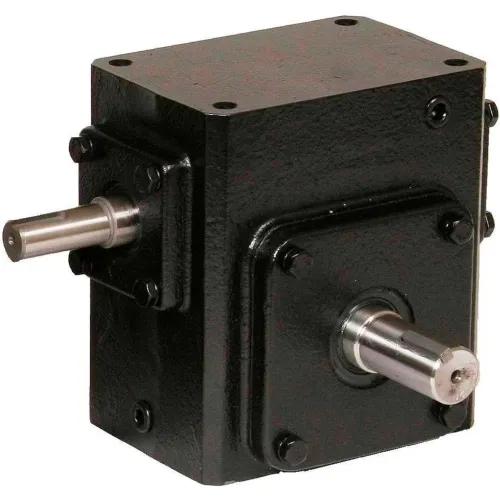

Worldwide HdRS206-5/1-R Cast Iron Right Angle Worm Gear Reducer 5:1 Ratio
Write a Review
|
Questions & Answers (0)
Product Description
Cast Iron Worm Gear Reducers are available in center distances 1.33 - 3.25 inches in ratio's from 5:1 to 60:1. The units have a one piece #Fc20 all cast iron housing, NEMA motor quill style input flanges or shaft inputs, come pre-filled with synthetic oil and have a 1 year warranty.
Features:
Features:
PRICE
$355.95
1
1
Ships within 1 Business Day
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Max Torque | 925 lb-in |
| Overhung Load | 700 lbs |
| Output Shaft Thrust Load | 750 lbs |
| Gear Ratio | 5:1 |
| WCD Center | 2.06 in |
Product Details
| Efficiency | 92 |
| Max Input Horsepower | 3.62 HP |
| Description | Cast Iron Right Ange Worm Gear Reducer |
| Manufacturers Part Number | HdRS206-5/1-R |
| Output Speed | 350 rpm |
| Backlash Angular Minutes | 17 ft |
| Brand | Worldwide Electric Corporation |
