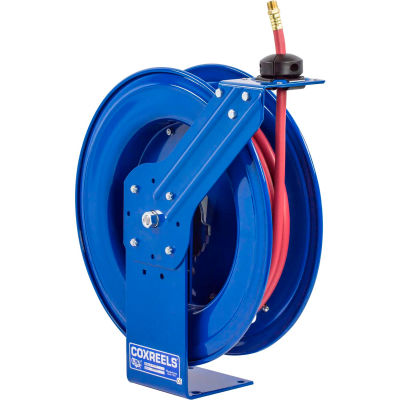

Coxreels SH-N-3100 3/8"x100' 300 PSI Heavy Duty Spring Retractable Low Pressure Hose Reel
COXREELS® SH Series "Super Hub™" spring driven hose reels, like the P Series, have a long history of dependable performance. The larger chassis and frame accommodate longer lengths and larger diameters of hose. Coxreels' original Super Hub™ dual axle support system increases the stability during operation, reduces vibration and strengthens the structural integrity of the reel.
External fluid path with machined from solid brass 90° full-flow NPT swivel inlet. Swivel Seals: NITRILE
Sturdy single pedestal reel features Coxreels' exclusive Super Hub™ dual axle support system. Guide arm adjusts to wall, floor, vehicle & overhead positions. Solid one piece, heavy gauge 1/4" steel base and support post for maximum stability. 1" solid steel axle and lubricated precision bearings for smooth rotation.
Enclosed factory tuned and matched cartridge-style spring motor. Non-corrosive stainless steel spring, pawl and zinc plated ratchet. Multi-position lock ratchet mechanism secures hose at desired length.
Features:
COXREELS® SH Series "Super Hub™" spring driven hose reels, like the P Series, have a long history of dependable performance. The larger chassis and frame accommodate longer lengths and larger diameters of hose. Coxreels' original Super Hub™ dual axle support system increases the stability during operation, reduces vibration and strengthens the structural integrity of the reel.
External fluid path with machined from solid brass 90° full-flow NPT swivel inlet. Swivel Seals: NITRILE
Sturdy single pedestal reel features Coxreels' exclusive Super Hub™ dual axle support system. Guide arm adjusts to wall, floor, vehicle & overhead positions. Solid one piece, heavy gauge 1/4" steel base and support post for maximum stability. 1" solid steel axle and lubricated precision bearings for smooth rotation.
Enclosed factory tuned and matched cartridge-style spring motor. Non-corrosive stainless steel spring, pawl and zinc plated ratchet. Multi-position lock ratchet mechanism secures hose at desired length.
Features:
- Professional grade heavy duty steel construction. Durable proprietary CPC™ powder coat process. Rolled edges & ribbed discs provide strength & safety. Leading 2-year manufacturer's limited warranty. Made in the U.S.A. - Sold & Supported Worldwide
- SWIVEL - Machined from solid brass 90° full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- 1/4" STEEL BASE - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Equipped with Coxreels exclusive super hub™ dual axle support
- MULTI-POSITION GUIDE ARM - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
- OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop, and sturdy permanently lubricated. precision bearings.
- 1" Permanently Lubricated Precision Bearings
Weights & Dimensions
- Hose Inside Diameter 3/8 in
- Width 9-1/4 in
- Length 24 in
- Hose/Cord Length 100 ft
- Reel Hose Length Capacity 100 ft
- Height 21-1/4 in
- Weight 71 lbs
Product Details
- Hose Material PVC
- Cable/Cord/Hose Included Yes
- Temperature Range -15 to 150 °F
- Drive/Return Type Spring Return
- Type Hose Reel
- For Use With Air,Water,Chemical
- Brand Coxreels
- PSI 300 psi
- Series SH
- Material Steel
- Max Temperature 150 °F
- Style Open Chassis
- Manufacturers Part Number SH-N-3100
- Open or Enclosed Chassis Open
- Inlet 3/8"
- Color Family Blue
Warranty
- Warranty 2 yr
