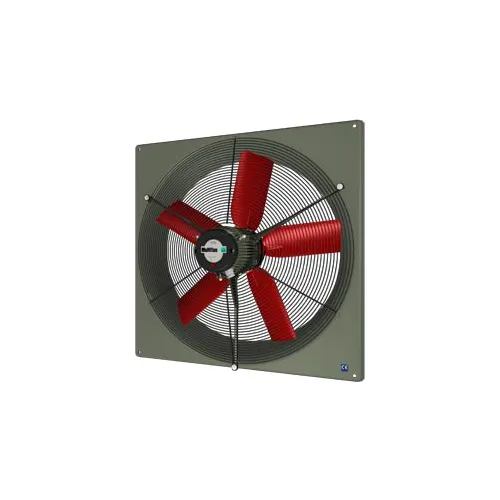

Multifan High Output Panel Agricultural Fan 24" Dia Single Phase 240v With Grill

Multifan High Output Panel Agricultural Fan 24" Dia Single Phase 240v With Grill

Item #: WB245800

(1)

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $983.00

$163.83/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Multifan High Output Panel Agricultural Fan 24" Dia Three Phase 460v With Grill

Multifan High Output Panel Agricultural Fan 24" Dia Three Phase 460v With Grill

Multifan Panel Agricultural Fan 20" Diameter Three Phase 240/460v With Grill

Multifan Panel Agricultural Fan 20" Diameter Three Phase 240/460v With Grill

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

HEAVY DUTY PANEL FANS
24" Diameter High Output Panel Fan - Single Phase 240V
Multifan Panel fans serve as an exhaust fan or fresh air intake and can be mounted in a wall in either horizontal or vertical position. Multifan Panel fans are used for agricultural applications such as ventilation in greenhouses, pork,- dairy- and poultry houses and industrial applications such as ventilation in factories or buildings. The fans are speed-controllable and engineered for continuous operation in highly corrosive environments, outdoor use and wet applications. Glass-filled, high impact polypropylene fan blades are powered by a wash down, severe duty ball bearing motor. Sealed motor is Class F insulated and features automatic thermal protection for low maintenance. Motor is housed in die cast aluminum and offers a labyrinth seal between housing and impeller guard to keep out moisture. Fan supports absorb sound and vibration for low noise operation. Vacuum formed, heavy duty fiberglass frame features corrosion resistant wire guards on motor side for safety. UL507 certified for outdoor use. C-UL recognized. 3 Year Limited Warranty. Horsepower rating based upon maximum speed/load.

Weights & Dimensions

  • Fan Diameter 24 in

Product Details

  • RPM High 1,600 rpm
  • Voltage 240 V
  • Description Panel Fan
  • Assembly Required Assembled
  • Horsepower 2-1/2 HP
  • Amperage 0.60 A
  • CFM High 10280 CFM
  • Phase 1
  • Brand Multifan
  • Material Polypropylene/Fiberglass
  • Decibels 70
  • Manufacturers Part Number V4E63K1M71100
  • Fan Type High Performance
Customer Review

5.0

  • 5 Star

    1
  • 4 Star

    0
  • 3 Star

    0
  • 2 Star

    0
  • 1 Star

    0

Most Recent Reviews

  • Most Recent Reviews
  • Highest Rated Reviews
  • Lowest Rated Reviews
  • Reviewer: Anonymous

    Date: February 23, 2012

    High Output Panel Fan 24" Dia Single Phase 240v
    Your review:
    Excellent, It is the fan that we were requiring, the shipping was very fast and the business was done without any problems. Thanks.
Product Q & A

There are no questions for this product.

Warranty

This product has a 12-month manufacturer's limited warranty for parts and a 12-month manufacturer's limited warranty for labor. Protect your purchase beyond the manufacturer's limited warranty.
