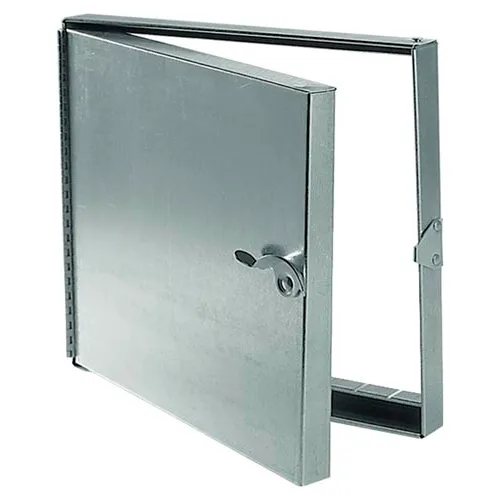

Hinged Duct Access Door - 24 x 24

Door for Duct Access with no hinge has an insulated door panel, along with the gasketing between the door and frame assures a tight seal without obstruction in the air system. Unit comes with extra - self tightening, hand operated cam latch(es) making the door panel completely removable. Galvanized steel material with mill finish. 2 Latches. Silver Finish. 10"W x 10"H Outside Flange Dimensions. 8-3/4"W x 8-3/4"D x 5/8"H Return Flange Dimensions.

Walk Through Access Door for access to duct work & air handling units. Aluminum Frame w/ Galvanized Steel Door Panel. " L "Handles ship loose with the unit. 1-15/16" (w) x 1-1/2" deep extruded aluminum frame w/ mitred corners. 2 Latches. Mill Finish. 32-1/2"W x 38-1/2"H Outside Flange Dimensions. 30 W x 1-5/8"D x 36 H Return Flange Dimensions.

The plastic access panel is designed to provide easy access to walls & ceilings. The high impact styrene plastic with U.V. stabilizers will not fade or corrode. All units except the 14x29 are hinged with a removable door panel feature.

Surface Mounted Access Door - 24" x 24" This 24"W x 24"H access door is made of solid 16 gauge steel for long lasting duability and dependability. 25-1/4"W x 25-1/4"H frame. Rounded safety corners on door provides an architecturally pleasing appearance. Exposed continuous piano hinge allows the door panel to open to 175 degrees. Mounting holes in each corner of the frame allow for easy installation. Since there is no frame to extend into the wall or ceiling, it is ideal for access to odd size opening. White finish. 4 latches.

Surface Mounted Access Door - 12" x 12" This 12"W x 12"H access door is made of solid 16 gauge steel for long lasting duability and dependability. 13-1/4"W x 13-1/4"H frame. Rounded safety corners on door provides an architecturally pleasing appearance. Exposed continuous piano hinge allows the door panel to open to 175 degrees. Mounting holes in each corner of the frame allow for easy installation. Since there is no frame to extend into the wall or ceiling, it is ideal for access to odd size opening. White finish. 1 latch.
