Honeywell Flame Sensor C7027A1023, UV Minipeeper, 0 To 215°F Range, 1/2" Mount

Honeywell Flame Sensor C7027A1023, UV Minipeeper, 0 To 215°F Range, 1/2" Mount

Item #: WBB762743

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $235.95

Save $11.80 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Honeywell Flame Amplifier R7849A1023 For 7800 Series & R7140 Relay Modules - 2 Seconds Or 3 Seconds

Honeywell Flame Amplifier R7849A1023 For 7800 Series & R7140 Relay Modules - 2 Seconds Or 3 Seconds

Honeywell Ultraviolet Amplifier R7849A1015, RM78XX & EC78XX Relay Mod., FFRT 0.8 Or 1 Sec., Purple

Honeywell Ultraviolet Amplifier R7849A1015, RM78XX & EC78XX Relay Mod., FFRT 0.8 Or 1 Sec., Purple

Honeywell Flame Sensor C7027A1049, UV Minipeeper, 0 To 215°F Range, 1/2" NPT Threaded Spud

Honeywell Flame Sensor C7027A1049, UV Minipeeper, 0 To 215°F Range, 1/2" NPT Threaded Spud

Honeywell Flame Amplifier R7847A1033, Used With 7800 Series Relay, FFRT 0.8 Or 3 Sec., Green

Honeywell Flame Amplifier R7847A1033, Used With 7800 Series Relay, FFRT 0.8 Or 3 Sec., Green

Honeywell On-Off Primary Control With PrePurge RM7895A1014, Intermittent Pilot

Honeywell On-Off Primary Control With PrePurge RM7895A1014, Intermittent Pilot

Honeywell Primary On-Off Burner Control RM7890A1015, 120V

Honeywell Primary On-Off Burner Control RM7890A1015, 120V

Honeywell Keyboard Display Module S7800A2142

Honeywell Keyboard Display Module S7800A2142

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Apache Mills Brush & Clean™ Entrance Mat 3/8" Thick 2' x 3' Charcoal

Apache Mills Brush & Clean™ Entrance Mat 3/8" Thick 2' x 3' Charcoal

Door Stop, Spring Loaded, H.D. Iron, Aluminum Finish - 658-1013

Door Stop, Spring Loaded, H.D. Iron, Aluminum Finish - 658-1013

King Electronic Programmable Digital Thermostat ESP230-R, 22 Amp, White

King Electronic Programmable Digital Thermostat ESP230-R, 22 Amp, White

RIDGID 43647 Inner Core Cable, 100'L x 5/8"W Cables For Use W/k-6200, K-750, & K-7500 Drum Machines

RIDGID 43647 Inner Core Cable, 100'L x 5/8"W Cables For Use W/k-6200, K-750, & K-7500 Drum Machines

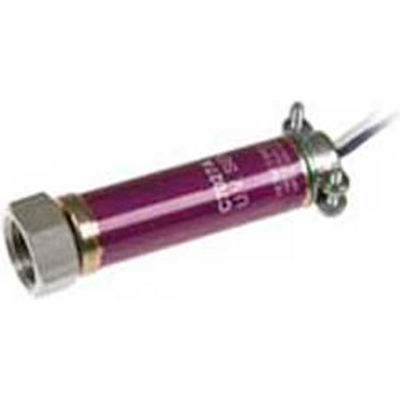

Honeywell Flame Sensor C7027A1023, UV Minipeeper, 0 To 215°F Range, 1/2" Mount

Features

  • Compact flame detector for use with flame safeguard controls with ultraviolet amplifiers
  • Use with Honeywell Flame Safeguard primary safety controls and burners requiring ultraviolet flame detection
  • C7027 mounts on a 1/2" sighting pipe by using an integral collar
  • Detectors can be wired in parallel for difficult sighting applications
  • C7027 seals against pressures up to 5 PSI (34.5KPA) when correctly installed
  • Allows for blast tube mounting due to compact size
  • C7044 mounts with a two screw bracket
  • The C7044 UV sensor tube is enclosed in a stainless steel housing
  • C7044 has the capability of side or end viewing in flame monitoring applications

Weights & Dimensions

  • Width 3-1/2 in
  • Length 3 in
  • Height 5-1/2 in
  • Lead Length 96 in
  • Weight 0.5 lbs

Product Details

  • Comments Detects UV Radiation In Flames
  • Mounting Location Integral Nut For 1/2" Sighting Pipe
  • Description Minipeeper
  • Type Flame Sensor, Ultraviolet, Minipeeper
  • Electrical Connections 2 NEC Class 1 Lead wires
  • For Use With Coal / Gas / Oil Fired Burners
  • Brand Honeywell
  • Manufacturers Part Number C7027A1023

Warranty

  • Warranty 1 yr
