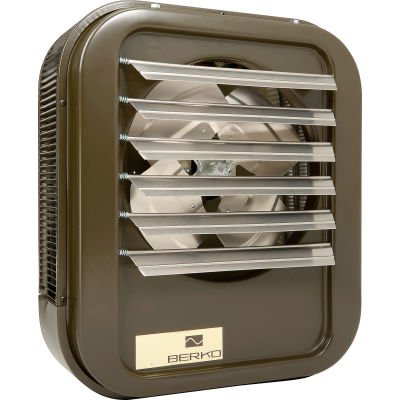

Use as auxiliary, supplementary or primary heat source in factories, stores, garages, basements, warehouses, public buildings, service stations, stock-rooms, offices, large or exposed areas or additions. One unit mounts either horizontally or vertically. Totally versatile. In addition, louvers adjust up and down for even greater control of throw direction. Louvers have stops to prevent complete closing of the discharge area. Horizontal and downflow in one unit. 360° positioning. Adjustable louvers. Aluminum-finned, copper clad steel sheath heating element has longer useful life, because of cooler sheath temperature and faster heat dissipation. Advanced pull-through air flow design draws air across heating element for more even air distribution and cooler element operation. Automatic control delays fan action until heating element is warm. When thermostat is satisfied fan continues to operate until heating element is cool. By preventing circulation of cold air and expelling excess heat, comfort level is raised and component life is extended. Automatic reset linear thermal cut-out capillary type, provides protection over entire length of element area. (Manual reset protection available on made-to-order basis). Specially designed venturi outlet to meet that added throw required in vertical position. Ruggedly built, yet lighter weight for easier installation. No piping flues, valves, or traps. Heavy gauge die-formed steel housing. Large, dynamically balanced fan blades provide maximum air flow with minimum turbulence and noise. Rugged, totally enclosed motor. 480 Volts, 3 Phase, 12 Amps. 24V control transformer and contactor.Mounting brackets sold separately.
Weights & Dimensions
- Width 19 in
- Height 21-3/4 in
- Depth 7-1/2 in
Product Details
- Kilowatts 10 kW
- Assembly Required Assembled
- Velocity FPM 970
- Discharge Horizontal or Vertical
- RPM 1600 rpm
- Amps High 12 A
- Material Steel
- Voltage 480 V
- BTU High 34100
- Phase 3
- CFM High 650 CFM
- Watts High 10000 W
- Manufacturers Part Number HUHAA1048
- Color Family Bronze
Warranty
- Warranty 1 ( 5 Years On Heat Element)
Compliance & Certifications
- Certifications cULus
Most Recent Reviews
- Most Recent Reviews
- Highest Rated Reviews
- Lowest Rated Reviews
There are 1 questions and 1 answer for this product.
-
does this unit have a 24 volt transformer and contactor built -in
Question Asked By: April 26, 2012
Answer This Question
Question Answered By:
-
Product Expert, April 26, 2012
Yes this unit has a 24V transformer and contactor.
-
This product has a 12-month manufacturer's limited warranty for parts and a 12-month manufacturer's limited warranty for labor. Protect your purchase beyond the manufacturer's limited warranty.
