Unit Heater, Horizontal or Vertical Downflow, 5KW at 208V, 1-3Ph

Unit Heater, Horizontal or Vertical Downflow, 5KW at 208V, 1-3Ph

Item #: WBB202120

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Frequently Purchased Together

  • Unit Heater, Horizontal or Vertical Downflow, 5KW at 208V, 1-3Ph
  • Two Stage Thermostat Kit UHMT2, 40-80°F For Horizontal/Downflow Unit Heater

    $129.95

  • Wall / Ceiling Mounting Bracket B10 For 3KW To 10KW Units

    $82.95

Price: $515.00

$85.83/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Global Industrial® Unit Heater, Horizontal Downflow, Multi-Watt, 5000-1881W, 208-240V

Global Industrial® Unit Heater, Horizontal Downflow, Multi-Watt, 5000-1881W, 208-240V

Unit Heater, Multi-Watt Horizontal Downflow Multi-Watt, 5000-1874W, 240-208V

Unit Heater, Multi-Watt Horizontal Downflow Multi-Watt, 5000-1874W, 240-208V

Global Industrial® Unit Heater, Horizontal or Vertical Downflow, 10KW, 480V, 3 Phase

Global Industrial® Unit Heater, Horizontal or Vertical Downflow, 10KW, 480V, 3 Phase

Global Industrial® Unit Heater, Horizontal Downflow, 10KW, 240V, 1 or 3 Phase

Global Industrial® Unit Heater, Horizontal Downflow, 10KW, 240V, 1 or 3 Phase

Unit Heater, Horizontal or Vertical Downflow, 20KW at 480V, 3Ph

Unit Heater, Horizontal or Vertical Downflow, 20KW at 480V, 3Ph

Unit Heater, Horizontal or Vertical Downflow, 5KW at 240V, 1-3Ph

Unit Heater, Horizontal or Vertical Downflow, 5KW at 240V, 1-3Ph

Unit Heater, Horizontal or Vertical Downflow, 5KW at 277V, 1Ph

Unit Heater, Horizontal or Vertical Downflow, 5KW at 277V, 1Ph

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Quick-Sling HVAC Swivel Flush Mount With H-Bracket QSWI3000 - 22"L x 35-1/4"W

Quick-Sling HVAC Swivel Flush Mount With H-Bracket QSWI3000 - 22"L x 35-1/4"W

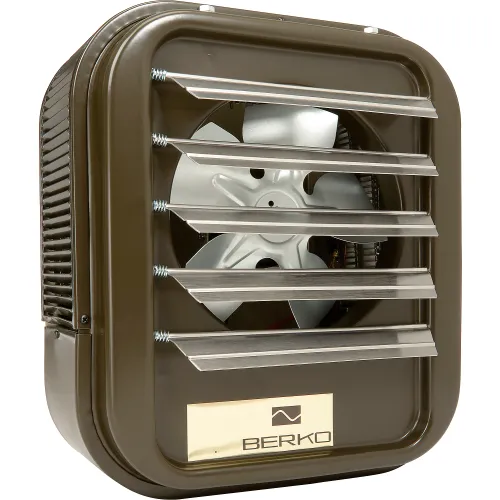

Unit Heater, Horizontal or Vertical Mount Downflow, 5KW at 208V, 1-3Ph -

Use as auxiliary, supplementary or primary heat source in factories, stores, garages, basements, warehouses, public buildings, service stations, stock-rooms, offices, large or exposed areas or additions. One unit mounts either horizontally or vertically. Totally versatile. In addition, louvers adjust up and down for even greater control of throw direction. Louvers have stops to prevent complete closing of the discharge area. Horizontal and downflow in one unit. 360° positioning. Adjustable louvers. Aluminum-finned, copper clad steel sheath heating element has longer useful life, because of cooler sheath temperature and faster heat dissipation. Advanced pull-through air flow design draws air across heating element for more even air distribution and cooler element operation. Forced air unit heater with 10 power ratings, from 3 KW to 50 KW heating output; 208, 240, 277 and 480V. 10,230 to 170,600 BTU/hr. 1- or 3-phase wiring on 5 through 10 KW 208/240V and 15 KW 208V units (field interchangeable). Branch circuit fusing (when required to meet NEC requirements for maximum 24 amps/ckt). 2- speed fan selector switch (25 to 50 KW models). Automatic control delays fan action until heating element is warm. When thermostat is satisfied fan continues to operate until heating element is cool. By preventing circulation of cold air and expelling excess heat, comfort level is raised and component life is extended. Automatic reset linear thermal cut-out capillary type, provides protection over entire length of element area. (Manual reset protection available on made-to-order basis). Specially designed venturi outlet to meet that added throw required in vertical position. Ruggedly built, yet lighter weight for easier installation. No piping flues, valves, or traps. Heavy gauge die-formed steel housing. Large, dynamically balanced fan blades provide maximum air flow with minimum turbulence and noise. Rugged, totally enclosed motor. 208 Volts, 1-3 Phase, 24 Amps. Mounting brackets sold separately. All of our dual-phase HUHAA unit heaters are shipped from the factory wired for single-phase and can be converted into three-phase operation.

Weights & Dimensions

  • Depth 7-1/2 in
  • Width 16 in
  • Height 14 in

Product Details

  • Kilowatts 5 kW
  • Voltage 208 V
  • Velocity FPM 800
  • Assembly Required Assembled
  • BTU High 17100
  • Discharge Horizontal or Vertical
  • RPM 1600 rpm
  • CFM High 350 CFM
  • Phase 1 or 3
  • Watts High 5000 W
  • Amps High 24 A
  • Material Steel
  • Manufacturers Part Number HUHAA520
  • Color Family Bronze

Warranty

  • Warranty 1 ( 5 Years On Heat Element)

Compliance & Certifications

  • Certifications cULus
