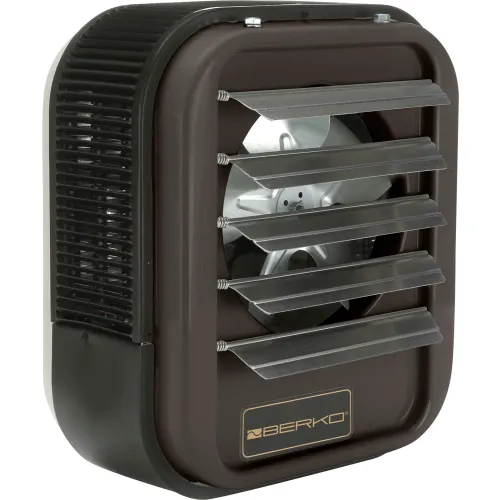

Unit Heater, Horizontal or Vertical Downflow, 5KW at 240V, 1-3Ph

Unit Heater, Horizontal or Vertical Downflow, 5KW at 240V, 1-3Ph

Item #: WBB202013

(3)

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $421.00

Save $21.05 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Unit Heater, Horizontal or Vertical Mount Downflow, 5KW at 240V, 1-3Ph -

Use as auxiliary, supplementary or primary heat source in factories, stores, garages, basements, warehouses, public buildings, service stations, stock-rooms, offices, large or exposed areas or additions. One unit mounts either horizontally or vertically. Totally versatile. In addition, louvers adjust up and down for even greater control of throw direction. Louvers have stops to prevent complete closing of the discharge area. Horizontal and downflow in one unit. 360° positioning. Adjustable louvers. Aluminum-finned, copper clad steel sheath heating element has longer useful life, because of cooler sheath temperature and faster heat dissipation. Advanced pull-through air flow design draws air across heating element for more even air distribution and cooler element operation. Forced air unit heater with 10 power ratings, from 3 KW to 50 KW heating output; 208, 240, 277 and 480V. 10,230 to 170,600 BTU/hr. 1- or 3-phase wiring on 5 through 10 KW 208/240V and 15 KW 208V units (field interchangeable). Branch circuit fusing (when required to meet NEC requirements for maximum 24 amps/ckt). 2- speed fan selector switch (25 to 50 KW models). Automatic control delays fan action until heating element is warm. When thermostat is satisfied fan continues to operate until heating element is cool. By preventing circulation of cold air and expelling excess heat, comfort level is raised and component life is extended. Automatic reset linear thermal cut-out capillary type, provides protection over entire length of element area. (Manual reset protection available on made-to-order basis). Specially designed venturi outlet to meet that added throw required in vertical position. Ruggedly built, yet lighter weight for easier installation. No piping flues, valves, or traps. Heavy gauge die-formed steel housing. Large, dynamically balanced fan blades provide maximum air flow with minimum turbulence and noise. Rugged, totally enclosed motor. 208/240 Volts, 1-3 Phase, 18/21 Amps. Mounting brackets sold separately. All of our dual-phase HUHAA unit heaters are shipped from the factory wired for single-phase and can be converted into three-phase operation.

Product Details

  • Kilowatts 5 / 3.7 kw
  • Assembly Required Assembled
  • Velocity FPM 800
  • Discharge Horizontal or Vertical
  • Watts Low 3700 w
  • RPM 1600 rpm
  • Amps High 21 a
  • Material Steel / Aluminum
  • Amps Low 18 a
  • Voltage 240 / 208 v
  • BTU High 17100
  • BTU Low 12624
  • CFM High 350 cfm
  • Phase 1 or 3
  • Watts High 5000 w
  • Warranty 1 ( 5 Years On Heat Element) yr
  • Manufacturers Part Number HUHAA524
  • Color Family Bronze

Weights & Dimensions

  • Width 14 in
  • Height 16 in
  • Depth 7-1/2 in

Compliance & Certifications

  • Certifications cULus
Customer Review

4.0

  • 5 Star

    2
  • 4 Star

    0
  • 3 Star

    0
  • 2 Star

    0
  • 1 Star

    0

Most Recent Reviews

  • Most Recent Reviews
  • Highest Rated Reviews
  • Lowest Rated Reviews
  • Reviewer: Anonymous

    Date: May 18, 2019

    UNIT HEATER
    Your review:
    GREAT HEATER FOR SMALL GARAGE
  • Reviewer: Anonymous

    Date: April 23, 2014

    Berko HUHAA524 Unit Heater
    Your review:
    Wow what a great heater! All steel case, quiet, easy to install and above all else it works! The operation of this heater is very quiet. The only sound is fan gently blowing warm air across the 16' x 30 ' shop raising the temperature from 45 degrees to 60 degrees in just over 12 minutes. I highly recommend this heater and their Customer Service/Technical support personnel. Great people, Great looking and highly functional Heater!
