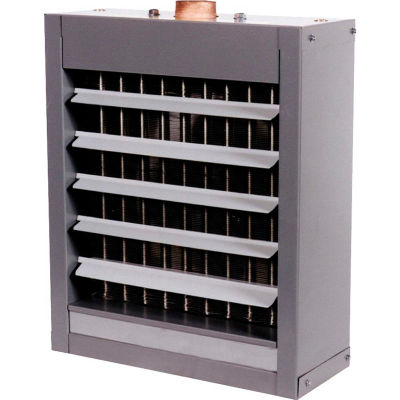

Beacon/Morris® Horizontal Hydronic Unit Heater, Header Type Coil Style, 118000 BTU - HBB180

Beacon/Morris® Horizontal Hydronic Unit Heater, Header Type Coil Style, 118000 BTU - HBB180

Item #: WBB1591747

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $1,442.00

$240.33/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Beacon/Morris® Horizontal Hydronic Unit Heater, Serpentine Coil Style, 18400 BTU - HB118A

Beacon/Morris® Horizontal Hydronic Unit Heater, Serpentine Coil Style, 18400 BTU - HB118A

Beacon/Morris® Horizontal Hydronic Unit Heater, Serpentine Coil Style, 8030 BTU - HB108A

Beacon/Morris® Horizontal Hydronic Unit Heater, Serpentine Coil Style, 8030 BTU - HB108A

Beacon/Morris® Horizontal Hydronic Unit Heater, Header Type Coil Style, 87100 BTU - HBB120

Beacon/Morris® Horizontal Hydronic Unit Heater, Header Type Coil Style, 87100 BTU - HBB120

Modine Steam or Hot Water Unit Heater HSB165SB01SA, 165000 BTU

Modine Steam or Hot Water Unit Heater HSB165SB01SA, 165000 BTU

Modine Steam or Hot Water Unit Heater HSB86SB01SA, 86000 BTU

Modine Steam or Hot Water Unit Heater HSB86SB01SA, 86000 BTU

Modine Steam or Hot Water Unit Heater HSB108SB01SA, 108000 BTU

Modine Steam or Hot Water Unit Heater HSB108SB01SA, 108000 BTU

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Beacon/Morris® Horizontal Hydronic Unit Heater, Header Type Coil Style, 118000 BTU - HBB180

Header type coil style, 180,000 BTU horizontal hydronic unit heater, non-OSHA standard guard, approved for water/steam applications, 20 gauge steel casing, seamless copper tubing coil with aluminum fin design, coil brazed into extruded header junctions, ETL certified at 200° EWT and 2 psi steam.

Product Details

  • Outlet Velocity 800 ft/min
  • Assembly Required Assembled
  • Discharge Horizontal
  • Input (BTU/H) 2 lb Steam 60°F Entering Air 180000 BTU/hr
  • RPM 1140 rpm
  • Type Hydronic Heater
  • Amps High 4.5 A
  • Output (BTU) Hot Water 200°F In 60°F Entering Air 118000 BTU
  • Steam Final Air Temperature 135 °F
  • Material Steel
  • Equivalence Of Direct Radiation 770 ft²
  • Voltage 120 V
  • Horsepower 1/3 HP
  • CFM High 2200 CFM
  • Phase 1
  • Brand Beacon-Morris
  • Warranty 1 yr
  • Water Flow 11.8 gal/min
  • Hot Water Final Air Temperature 110 °F
  • Manufacturers Part Number HBB180
  • Color Family Gray

Weights & Dimensions

  • Width 15 in
  • Fan Diameter 18 in
  • Length 26 in
  • Height 31 in
  • Pressure Drop ft/h20 0.6
  • Max Mounting Height 13 ft
  • Condensate Pounds per Hour 190 lbs
  • Heat Throw 53 ft
  • Weight 90 lbs

Compliance & Certifications

  • Certifications ETL, ETLc
