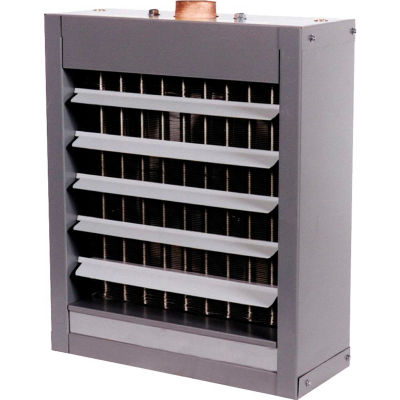

Beacon/Morris® Horizontal Hydronic Unit Heater, Header Type Coil Style, 13050 BTU - HBB018
Header type coil style, 18,000 BTU horizontal hydronic unit heater, OSHA fan guard standard, approved for residential/commercial water/steam applications, 20 gauge steel casing, seamless copper tubing coil with aluminum fin design, coil brazed into extruded header junctions, ETL certified at 200° EWT and 2 psi steam.
Header type coil style, 18,000 BTU horizontal hydronic unit heater, OSHA fan guard standard, approved for residential/commercial water/steam applications, 20 gauge steel casing, seamless copper tubing coil with aluminum fin design, coil brazed into extruded header junctions, ETL certified at 200° EWT and 2 psi steam.
Weights & Dimensions
- Width 11 in
- Fan Diameter 9 in
- Length 16 in
- Height 17 in
- Pressure Drop ft/h20 0.005
- Max Mounting Height 8 ft
- Condensate Pounds per Hour 18 lbs
- Heat Throw 20 ft
- Weight 26 lbs
Product Details
- Outlet Velocity 395 ft/min
- Assembly Required Assembled
- Discharge Horizontal
- Input (BTU/H) 2 lb Steam 60°F Entering Air 18000 BTU/hr
- RPM 1550 rpm
- Type Hydronic Heater
- Amps High 0.8 A
- Output (BTU) Hot Water 200°F In 60°F Entering Air 13050 BTU
- Steam Final Air Temperature 102 °F
- Material Steel
- Equivalence Of Direct Radiation 78 ft²
- Voltage 120 V
- CFM High 395 CFM
- Phase 1
- Watts High 16 W
- Brand Beacon-Morris
- Manufacturers Part Number HBB018
- Hot Water Final Air Temperature 95 °F
- Water Flow 1.3 gal/min
- Color Family Gray
Warranty
- Warranty 1 yr
Compliance & Certifications
- Certifications ETL, ETLc
