Patterson's 26" high velocity fan with air throw of 150 feet indoors, used for personnel, process, equipment cooling as well as general air circulation, industrial use only. Built for performance, superior distance of air throw and durability.
Key attributes of the HV Series:
Note:This is an industrial product, it was not designed for and is not intended for residential use. Orders for residential use will not be accepted.
Key attributes of the HV Series:
- Direct drive, maintenance-free motor with Sealed bearings (Totally Enclosed)
- Side-vented barrel design promotes optimum air flow
- Fan blades engineered for maximum air velocity and efficiently smooth operation
- Powder coated, corrosion Resistant OSHA compliant recessed finger guards
- Deep venturi inlet/ outlet design of barrel creates even column of non-disturbed air flow
- Limited warranty of 2 years
Note:This is an industrial product, it was not designed for and is not intended for residential use. Orders for residential use will not be accepted.
Weights & Dimensions
- Weight 96 lbs
- Width 37 in
- Fan Diameter 30 in
- Distance Air Throw 200 ft
- Cord Length 12 ft
- Cooling Area 12000 in²
- Height 37 in
- Depth 22 in
Product Details
- Number of Blades 2
- Number of Speeds 1
- Blade Type Galvanized Aluminum
- Mounting Location Column, Free Standing, or Wall
- Assembly Required Assembled
- Amperage 13.4 A
- Type Drum Fan
- Package Quantity 1
- Drive Type Direct Drive
- Material Steel
- RPM High 1,725 rpm
- Voltage 115 V
- Description Industrial Drum Fan
- Horsepower 1 HP
- Includes Yoke Mount Bracket
- Phase 1
- Motor Type Totally Enclosed Air Over (TEAO)
- CFM High 12000 CFM
- Oscillating/Non Oscillating Non-Oscillating
- Power Cord Type SJT 3 Conductor
- Watts 1,541 W
- Brand Patterson Fan
- Max Ambient Temperature 104 °F
- Hertz 60 Hz
- Decibels 82.2
- Manufacturers Part Number H30A
- Color Family Blue
- Fan Type Industrial
Warranty
- Warranty 2 yr
Compliance & Certifications
- Certifications OSHA Compliant
Photo/Video Gallery
Customer Review
Product Q & A
There are no questions for this product.

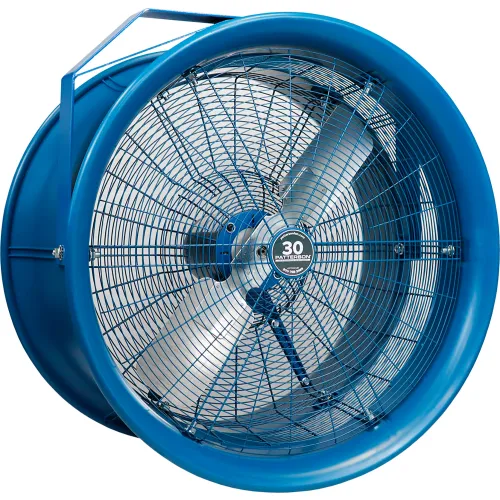

Patterson Fan 30" Industrial Drum Fan w/ Yoke Mount, 12,000 CFM, 1 HP, 1 Phase
