Marathon Motors HVAC Motor, G143, 056T17D5348, 1 1/2HP, 1800RPM, 208-230/460V, 3 PH, 56 FR

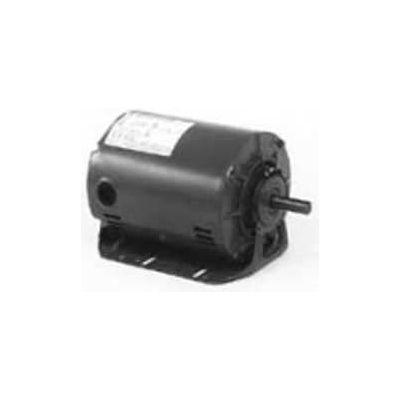

Picture may not represent actual product

Marathon Motors HVAC Motor, G143, 056T17D5348, 1 1/2HP, 1800RPM, 208-230/460V, 3 PH, 56 FR

Item #: WBB871931

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $563.00

$93.83/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Marathon Motors HVAC Motor, G122, 056T17D5329, 1 1/2HP, 1800RPM, 208-230/460V, 3 PH, 56 FR

Marathon Motors HVAC Motor, G122, 056T17D5329, 1 1/2HP, 1800RPM, 208-230/460V, 3 PH, 56 FR

Marathon Motors HVAC Motor, G141, 056T17D5346, 3/4HP, 1800RPM, 208-230/460V, 3 PH, 56 FR

Marathon Motors HVAC Motor, G141, 056T17D5346, 3/4HP, 1800RPM, 208-230/460V, 3 PH, 56 FR

Marathon Motors HVAC Motor, G140, 056T17D5345, 1/2HP, 1800RPM, 208-230/460V, 3 PH, 56 FR

Marathon Motors HVAC Motor, G140, 056T17D5345, 1/2HP, 1800RPM, 208-230/460V, 3 PH, 56 FR

Marathon Motors HVAC Motor, K1418, 5K49UN4086X, 2HP, 1725RPM, 208-230/460V, 3 PH, 56H FR

Marathon Motors HVAC Motor, K1418, 5K49UN4086X, 2HP, 1725RPM, 208-230/460V, 3 PH, 56H FR

Marathon Motors, C216, 5KC36LN1X, 1/3HP, 1725/1425RPM, 115/208-230V, 1PH, 56 FR, DP

Marathon Motors, C216, 5KC36LN1X, 1/3HP, 1725/1425RPM, 115/208-230V, 1PH, 56 FR, DP

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Century H655V1, Fan and Blower Motor Three Phase 200-230 Volts 1725/1140RPM 1/2~22 HP

Century H655V1, Fan and Blower Motor Three Phase 200-230 Volts 1725/1140RPM 1/2~22 HP

Century F268, Split Phase Resilient Base Motor 100-115/200-230 Volts 1800 RPM 1/2 HP

Century F268, Split Phase Resilient Base Motor 100-115/200-230 Volts 1800 RPM 1/2 HP

Marathon Motors HVAC Motor, G143, 056T17D5348, 1 1/2HP, 1800RPM, 208-230/460V, 3 PH, 56 FR

Marathon's line of Heating, Ventilation, and Air Conditioning Motors are designed with dynamically balanced rotors for reduced vibration and quiet operation.

Weights & Dimensions

  • Drive End Bearing Size 6203
  • Opposite End Bearing Size 6203
  • Weight 28 lbs

Product Details

  • Mounting Location RB (Resilient Base)
  • Number of Speeds 1
  • Assembly Required F1 Only
  • Rotation CCW/CW °
  • Ambient Temperature 40 °C
  • Insulation Class B
  • RPM Range 1701-1800 rpm
  • Voltage 208-230/460 V
  • Rated RPM 1800
  • Frame 56
  • Service Factor 1.15
  • Horsepower 1 1/2 HP
  • Enclosure Type Open/Drip Proof
  • Is_Motor Yes
  • Duty Continuous
  • Phase 3
  • Enclosure DP
  • Brand Marathon Motors
  • Bearing Type Ball
  • Full Load Amps 4.8-4.8/2.4 FLA
  • Motor RPM 60 Hertz 1800 rpm
  • Thermal Protection Automatic
  • Hertz 60 Hz
  • Manufacturers Part Number X021
