Marathon's line of Heating, Ventilation, and Air Conditioning Motors are designed with dynamically balanced rotors for reduced vibration and quiet operation.

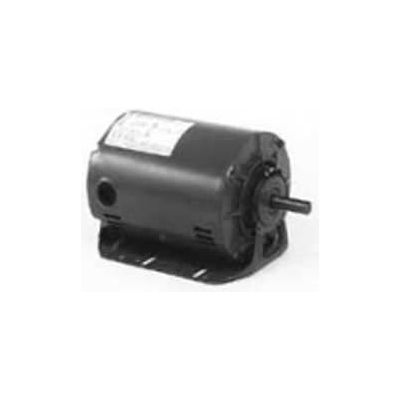

Marathon Motors HVAC Motor, K1415, 5K49PN4088X, 1 1/2HP, 1725RPM, 208-230/460V, 3 PH, 56H FR
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$515.00
1
1
Ships in 2 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Weight | 434 lbs |
| Opposite End Bearing Size | 6203 |
| Drive End Bearing Size | 6203 |
Product Details
| Number of Speeds | 1 |
| Motor RPM 60 Hertz | 1725 rpm |
| Mounting Location | RB (Resilient Base) |
| Phase | 3 |
| Manufacturers Part Number | BL3-RS-OP-56H-4-B-D-2-RS |
| Enclosure | DP |
| Service Factor | 1.15 |
| Brand | Marathon Motors |
| Bearing Type | Ball |
| Insulation Class | B |
| Horsepower | 1 1/2 HP |
| Frame | 56H |
| Hertz | 60 Hz |
| Rotation | CCW/CW ° |
| Thermal Protection | Automatic |
| Enclosure Type | Open/Drip Proof |
| Voltage | 208-230/460 V |
| Full Load Amps | 5.1-5.2/2.6 FLA |
| Duty | Continuous |
| Rated RPM | 1725 |
| RPM Range | 1701-1800 rpm |
| Ambient Temperature | 40 °C |
