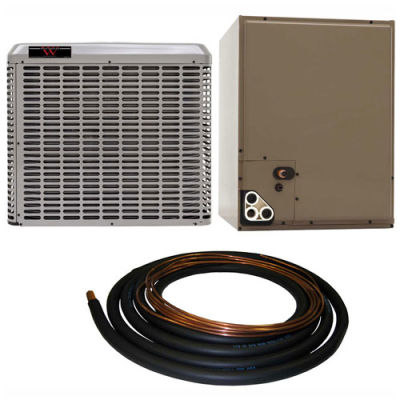

Winchester Air Conditioner Sweat System 14SAC36-30 - 3 Ton, 36000 BTU, 14 SEER
Stay cool with this single phase 14 SEER sweat air conditioning system designed for residential applications and consists of the outdoor condenser, indoor coil, and line set. The condenser is charged with R-410A refrigerant and has a top air discharge. The multi-positional fully cased coil is filled with a dry nitrogen, and is to be matched to the width of either the furnace or modular air handler. The Line Set is 30 ft. in length and has a 3/8 in. liquid line and 3/4 in. insulated suction line. AHRI Listed and Certified, UL Listed. Final connections from line set to coil and condenser must be done by a certified technician. The system is designed to be used with a new or existing furnace, or air handler, which is available separately. Please Note: Due to the 2015 Federal Regional Standards for Heating and Cooling Products, customers located in the Southeastern Region consisting of the following states are required to have systems installed that are a minimum of 14 SEER: AL, AK, DE, FL, GA, KY, LA, MD, MS, NC, OK, SC, TN, TX, VA. Customers located in the Southwestern Region consisting of the following states are required to have systems installed that are a minimum of 14 SEER, 12.2 EER ≤ 3.5 tons, 11.7 EER ≥ 4 tons: AZ, CA, NV, NM.
Stay cool with this single phase 14 SEER sweat air conditioning system designed for residential applications and consists of the outdoor condenser, indoor coil, and line set. The condenser is charged with R-410A refrigerant and has a top air discharge. The multi-positional fully cased coil is filled with a dry nitrogen, and is to be matched to the width of either the furnace or modular air handler. The Line Set is 30 ft. in length and has a 3/8 in. liquid line and 3/4 in. insulated suction line. AHRI Listed and Certified, UL Listed. Final connections from line set to coil and condenser must be done by a certified technician. The system is designed to be used with a new or existing furnace, or air handler, which is available separately. Please Note: Due to the 2015 Federal Regional Standards for Heating and Cooling Products, customers located in the Southeastern Region consisting of the following states are required to have systems installed that are a minimum of 14 SEER: AL, AK, DE, FL, GA, KY, LA, MD, MS, NC, OK, SC, TN, TX, VA. Customers located in the Southwestern Region consisting of the following states are required to have systems installed that are a minimum of 14 SEER, 12.2 EER ≤ 3.5 tons, 11.7 EER ≥ 4 tons: AZ, CA, NV, NM.
Product Specifications
- BRANDWinchester
- ASSEMBLYAssembled
- MANUFACTURER'S PART NUMBER14SAC36-30
- BTU COOLING36,000
- INDOOR WIDTH INCHES17-1/2
- INDOOR HEIGHT INCHES25-5/8
- INDOOR DEPTH INCHES21-1/2
- OUTDOOR WIDTH INCHES29-1/4
- OUTDOOR HEIGHT INCHES36-1/4
- OUTDOOR DEPTH INCHES29-1/4
- WEIGHT LBS155
- CONSTRUCTIONGalvanized Steel
- COLOR FINISHGray
- VOLTAGE240
- ENERGY EFFICIENCY RATING (EER)12.2
- SEASONAL ENERGY EFFICIENCY RATING (SEER)14
- SPEEDS1
- REFRIGERANTR-410A
- TON3
- DECIBELS (DBA)72
- APPROVALS OR CERTIFICATIONSCSA
- LIMITED WARRANTY YEARS10
- ENERGY STAR CERTIFIEDNo
- APPLICATIONResidential
- AMP CIRCUIT35
- INCLUDESEvaporator Coil, 30 Ft. Line Set
- COMPRESSOR TYPEScroll
- REFRIGERANT CHARGE OZ74
- COMPRESSOR RLA 15.4
- COMPRESSOR LRA83.9
