Price: $4,595.00
When you are looking for high quality and reliable comfort, trust ROYALTON® heat pump systems for your home. These complete electric heating and cooling systems work year round to deliver indoor comfort while offering efficiencies up to 16 SEER. The system consists of the outdoor heat pump condenser, air handler with evaporator coil, electric heat kit, and 30 ft. line set, and are approved for residential and mobile home applications. The condenser is charged with R-410A refrigerant and has a top air discharge. The one-piece multi-positional air handler houses the dry nitrogen charged evaporator coil, and is designed for installation in upflow, downflow, and horizontal applications. Plus, the ECM constant torque DC blower motor uses less power during operation and increases the efficiency which saves you money. The 30 ft. line set includes the liquid line, and insulated suction line. The system is ETL listed, and AHRI listed and certified. Final connections from line set to coil and condenser, and system start-up must be done by a certified technician to ensure proper and efficient operation.

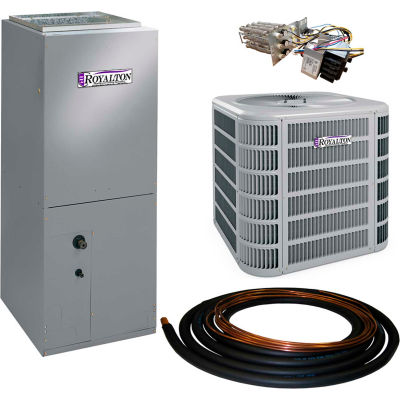

- Includes the outdoor heat pump, one piece indoor air handler with evaporator coil, heat kit, and 30 ft. line set
- Multi-positional air handler features a constant torque blower motor for increased efficiency
- Electric heat kit is easy to install and is available in 15 kW; a representative will contact you to confirm sizing prior to shipment
- Air handler includes a 1 in. filter rack with thumb screws for easy access and removal
- Heat pump condenser features a high efficiency grommet mounted scroll compressor with sound blanket for quiet operation
- Condenser coil is protected by a full metal louvered panels which can be easily removed for service
Product Specifications
- BRANDROYALTON
- MANUFACTURER'S PART NUMBER4HP15L36P
- BTU COOLING33,800
- BTU HEATING30,800
- INDOOR WIDTH INCHES21-1/2
- INDOOR HEIGHT INCHES53-3/4
- INDOOR DEPTH INCHES19-1/2
- INDOOR WEIGHT LBS159
- OUTDOOR WIDTH INCHES28-1/4
- OUTDOOR HEIGHT INCHES37-1/4
- OUTDOOR DEPTH INCHES28-1/4
- OUTDOOR WEIGHT LBS186
- CONSTRUCTIONMetal
- COLOR FINISHGray
- VOLTAGE230
- ENERGY EFFICIENCY RATING (EER)12.5
- SEASONAL ENERGY EFFICIENCY RATING (SEER)15
- SPEEDS1
- REFRIGERANTR410A
- TON3
- DECIBELS (DBA)76
- APPROVALS OR CERTIFICATIONSETL, cETL Listed, AHRI Certified
- LIMITED WARRANTY YEARS10
- ENERGY STAR CERTIFIEDNo
- APPLICATIONResidential
- AMP CIRCUIT30
- INCLUDESAir handler with factory installed thermal expansion valve, heat kit, outdoor he
- COMPRESSOR TYPEScroll
- REFRIGERANT CHARGE OZ161
- COMPRESSOR RLA 14.1
- COMPRESSOR LRA77
