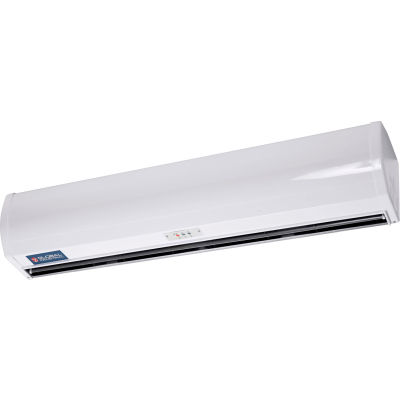

This air curtain is intended to be mounted on the interior of doors, windows, or walls. It is not rated for exterior mounting that will expose the unit to the outside elements.
Product Specifications
- BRANDGlobal Industrial
- WIDTH INCHES48
- DEPTH INCHES8-1/2
- HEIGHT INCHES8-5/8
- DOOR WIDTH INCHES48
- MAXIMUM DOORWAY HEIGHT FEET10
- COLOR FINISHWhite
- ASSEMBLYAssembled
- CFM HIGH990
- CFM LOW816
- VOLTAGE120
- PHASE1
- HERTZ60
- AMPS3.5 / 2.65
- WATTS425 / 320
- HORSEPOWER1/3
- HEATING OPTIONUnheated
- POWER CORD TYPESJT, 3X 18AWG
- POWER CORD LENGTH FEET5
- DECIBELS (DB)56
- MOUNT TYPEInterior
- APPROVALS OR CERTIFICATIONSETL/cETL Listed
- LIMITED WARRANTY YEARS1
- DOOR HEIGHT FEET10
Most Recent Reviews
- Most Recent Reviews
- Highest Rated Reviews
- Lowest Rated Reviews
-
Reviewer: DAVID
Date: July 23, 2020
-
Reviewer: Phillip
Date: June 27, 2020
Your review:
Works great 👍 -
Reviewer: George
Date: May 06, 2020
Your review:
Works great, easy to install. Would recommend. Hope it lasts. -
Reviewer: KATHLEEN
Date: January 17, 2020
Your review:
The remote must be almost under unit to work. I needed it to work from across the room. Easy to install, but instructions stink. -
Reviewer: Anonymous
Date: August 22, 2017
Your review:
Installed it over doorway in foyer going into kitchen area. Its cooler n kitchen area now and when we get up n morning, the hallway n kitchen is nice. thinking about getting another one for hallway to den. -
Reviewer: Anonymous
Date: August 01, 2016
Your review:
super works fine hung real well.less flies.not to much air curtain the ladies don't even complain. -
Reviewer: Anonymous
Date: July 03, 2016
Your review:
Does the job well, easy to assemble -
Reviewer: Anonymous
Date: August 31, 2015
Your review:
This was easy to install. It works great and has made a huge difference in the temperature of our store. -
Reviewer: Anonymous
Date: July 23, 2015
Your review:
I own a small restaurant that seats about 60 people. This is perfect and has since kept out most bugs. This is a great and inexpensive way to give your diners a pest free dining experience. -
Reviewer: Anonymous
Date: June 29, 2015
Your review:
Was a little worried about the CFM being too low, but they have proved themselves on both doors!
There are 7 questions and 7 answers for this product.
-
Can a sensor of some kind be installed so when someone walks in it turns on then off
Question Asked By: Andy, June 12, 2020
Answer This Question
Question Answered By:
-
Product Expert, June 16, 2020
Hello Andy, this model is only recommended to be operated using the remote control and power switch on the unit. Thank you for your question.
-
-
Can these fans be mounted sideways vertically on the side wall next to a garage door to keep heated/cooled garage temp and bugs out? If yes, for a 16" door width, should there be two pair sets on both sides to blow "into each-other"? Reason is it can't be mounted overhead because of the garage door itself.
Question Asked By: Sefi, May 08, 2020
Answer This Question
Question Answered By:
-
Product Expert, May 14, 2020
Hello, this can be mounted on the side of the door opening. Our Global sales team can help by calling the number on our Contact Us Page. Please provide specifications in addition to the width of the garage, which will help us determine if this will be suitable. Thank you for your question.
-
-
Can this fan be used outdoors on a wall connected to the outside of a building?
Question Asked By: Walter, May 04, 2020
Answer This Question
Question Answered By:
-
Product Expert, May 07, 2020
Hello Walter, this air curtain is intended to be mounted on the interior of doors, windows, or walls. We apologize but it is not rated for exterior mounting that could potentially expose the unit to the outside elements. Thank you for your interest in our product.
-
-
can this unit be used with a sensor (plug in)?
Question Asked By: October 15, 2014
Answer This Question
Question Answered By:
-
Product Expert, October 15, 2014
I’m not too sure what this customer means by sensor, but I’m guessing they are meaning a “Door Limit Switch”. This is basically a switch that turns the unit on when the door is open and off when the door is closed. Unfortunately, our Global air curtains cannot be wired to a door limit switch. They can only be operated manually or by remote… Let me know if my assumption was wrong on this.
-
-
Is this product AMCA certified?
Question Asked By: May 06, 2014
Answer This Question
Question Answered By:
-
anonymous
AMCA International – “Air Movement and Control Association International” is a non-for-profit association which standards describe how to test fans, air curtains and other air movement and circulation equipment. We test our fans, blowers and exhaust fans according to AMCA 230 Standard in order to calculate the air flow and static pressure but we test them in house. We don’t certify them in any AMCA laboratory.
-
-
Do these air curtain machines, 246609 have an 8" column of air when the air comes on?
Question Asked By: May 06, 2014
Answer This Question
Question Answered By:
-
anonymous
No, they don't.
-
-
Is this CSA approved?
Question Asked By: May 06, 2014
Answer This Question
Question Answered By:
-
anonymous
This is not CSA approved
-
This product has a 12-month manufacturer's limited warranty for parts and a 12-month manufacturer's limited warranty for labor. Protect your purchase beyond the manufacturer's limited warranty.
