Jetaire® 24 Inch High Velocity Fan, Oscillating, 460 V, 3PH, 5600 CFM, 1/2 HP, Gray HV2413OC-Z

Jetaire® 24 Inch High Velocity Fan, Oscillating, 460 V, 3PH, 5600 CFM, 1/2 HP, Gray HV2413OC-Z

Item #: WB245475

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

  • SELECT
  • 230
  • 460

460

Price: $1,830.99

$305.17 / month suggested monthly payments with 6 mo. special financing on the purchase of $1,830.99 or save 5% on purchase.

Quantity

Jetaire® 24 Inch High Velocity Fan, Oscillating, 460 V, 3PH, 5600 CFM, 1/2 HP, Gray HV2413OC-Z

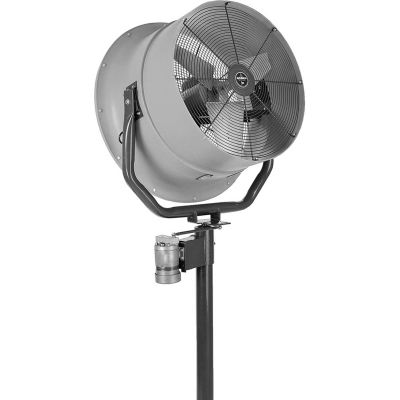

This 24" JetAire high velocity fan moves a large concentration of air 115' or more with 90° oscillation and a tilt head for precise, directional air movement. It is manufactured with a durable polypropylene industrial gray barrel and equipped with 460-volt three phase totally enclosed direct drive 1/2 HP motor. Mounting options include pedestal base, vertical mounting bracket for ceiling attachments (safety cable included), horizontal mounting bracket for column mounts, and 6' and 10' poles for permanent concrete placement. Cool misting kit available.

Product Specifications

  • BRANDTriangle Engineering
  • CFM HIGH5,600
  • WIDTH INCHES34
  • HEIGHT INCHES47
  • DEPTH INCHES23
  • FAN DIAMETER INCHES24
  • WEIGHT LBS183
  • MANUFACTURER'S PART NUMBERHV2413OC-Z
  • COLOR FINISHIndustrial Gray
  • CONSTRUCTIONSteel / Polypropylene
  • HORSEPOWER1/2
  • FAN TYPEIndustrial, Agricultural
  • RPM HIGH 1,075
  • PHASE3
  • AMPS1.3
  • HERTZ (HZ)60
  • VOLTAGE460
  • SPEEDS1
  • MOTOR TYPETotally Enclosed
  • DRIVE TYPEDirect Drive
  • OSCILLATING/NON-OSCILLATINGOscillating
  • LIMITED WARRANTY YEARS1
  • APPLICATIONWarehouses, Commercial Buildings, Golf Courses
  • MOUNT TYPEPedestal , Pole, Wall
  • POWER CORD TYPESJO Type Plug
  • POWER CORD LENGTH FEET6
  • MAX AMBIENT TEMPERATURE °F104
  • BLADE TYPEAluminum
  • BLADE QUANTITY3
  • DISTANCE AIR THROW FEET115
  • MODEL245475
  • Base Model Number245475
