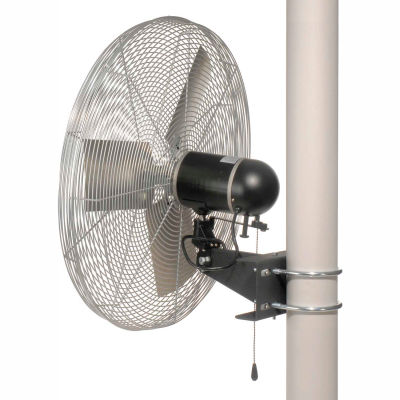

Non-Oscillating TPI Pole Mount Fans
Pole Mount Fans attach to 4", 6" or 8" poles with U-bolts (not included). These quality fans include an enclosed permanently lubricated, PSC-type ball bearing single-phase motor for long life and optimum performance. 3 quiet aluminum blades are enclosed in double locking chrome plated steel wire guards for safety. Pivot-action fan head allows vertical tilt angle adjustments. 2-speed pull chain operation. 12'L SJT type, 3-conductor power cord. 120V. Easy assembly with pre-assembled fan heads and mounts. Meets OSHA standards, ETL, cETL Listed. Horsepower rating based upon maximum speed/load.
Product Specifications
- BRANDTPI
- ASSEMBLYAssembled
- CFM HIGH6,800
- CFM LOW6,000
- FAN DIAMETER INCHES30
- MANUFACTURER'S PART NUMBER292440
- COLOR FINISHGray / Silver
- CONSTRUCTIONSteel / Aluminum
- HORSEPOWER1/2
- FAN TYPEIndustrial
- RPM HIGH 1,100
- PHASE1
- VOLTAGE120
- SPEEDS2
- MOTOR TYPETotally Enclosed
- DRIVE TYPEDirect Drive
- OSCILLATING/NON-OSCILLATINGNon-Oscillating
- LIMITED WARRANTY YEARS5
- APPROVALS OR CERTIFICATIONSETL, cETL Listed, OSHA Compliant
- APPLICATIONSpot & People Cooling
- FEATURESPull Chain Switch
- MOUNT TYPEPole
- POWER CORD TYPESJT 3 Conductor
- POWER CORD LENGTH FEET12
- BLADE TYPEAluminum
- BLADE QUANTITY3
There are 1 questions and 1 answer for this product.
-
What is the amperage draw?
Question Asked By: Sam , January 05, 2017
Answer This Question
Question Answered By:
-
anonymous
Hello Sam, This model amperage draw is 4. Thank you for your interest in our product!
-
