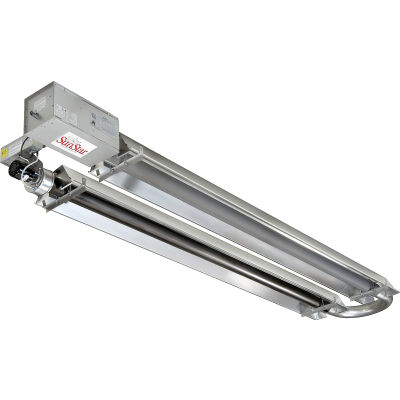

SunStar Natural Gas Infrared Heater U-Tube Vacuum - SIU100-30-N5 - 100000 BTU

Video - Click to Play
See all 104 items in product family

SunStar Natural Gas Infrared Heater U-Tube Vacuum - SIU100-30-N5 - 100000 BTU

Print

Item #: WBB59810

Sold By: globalindustrial.com

Usually ships in 5 to 8 days Estimated lead times do not include weekends or holidays. Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

Price: $ 967.00
Add to list

Customers Who Viewed This Also Viewed

Product Information
Warranty
Customer Review
Product Q&A
Accessories
Offers fuel savings up to 70%.

U-Tube heater configurations are great for high heat loss areas including loading docks. Vacuum system pulls products of combustion through combustion chamber for increased radiant efficiency and greater safety. Reliable direct spark ignition and 100% gas shut-off safety control. Up to 50' of ducting in fresh air and 75' sidewall venting capability. Vacuum system features a totally enclosed combustion chamber. Heavy duty draft inducer assembly features permanently lubricated totally enclosed ball bearing motor for maintenance-free operation. Highly efficient aluminum reflectors. Includes diaphragm air switch, heavy duty cast iron burner and burner inspection sight glass. Diagnostic monitoring light system. 120V supply required. CSA certified. 5 Year Limited Warranty on tubes. 1 Year Limited Warranty on unit. Made in the USA.

To help pick out the heater that’s right for you, click here to view the Heat Loss Estimating Chart.

Documents
Specifications
Documents
MANUAL

Documents are in PDF format

Product Specifications

    • BRANDSunStar®
    • LENGTH FEET17-3/4
    • WIDTH INCHES31
    • HEIGHT INCHES6-1/4
    • DUCT SIZE INCHES4
    • TUBE LENGTH FEET30
    • MIN. CLEARANCE COMBUSTIBLE AT 45 DEGREE ANGLE INCHFront 66, Rear 20, Ceiling 6, Below 88, End 40
    • MIN. CLEARANCE COMBUSTIBLES AT HORIZONTAL INCHSide 66, Ceiling 6, Below 88, End 40
    • MIN. MOUNTING HEIGHT FEET AT 45 DEGREE ANGLE13
    • MIN. MOUNTING HEIGHT FEET AT HORIZONTAL14
    • WEIGHT LBS145.6
    • CONSTRUCTIONCast Iron Burner / Aluminum Reflectors
    • TUBE CONSTRUCTIONHot Rolled Steel
    • BTU HIGH100000
    • BURNER PRESSURE W.C. INCHES3-1/2
    • GAS INLET PRESSURE MAX. WATER COLUMN INCHES14
    • GAS INLET PRESSURE MIN. WATER COLUMN INCHES5
    • SHAPEU
    • FUEL TYPENatural Gas
    • IGNITION TYPEDirect Spark
    • DESCRIPTIONStandard
    • TYPENegative Pressure
    • LIMITED WARRANTY YEARS1
    • MANUFACTURER'S PART NUMBERSIU100-30-N5

Avg. Customer Rating: (1 customer reviews)

Write your own review

Sort by:

1 Result

infrared heater

Your review: Very disappointed! Not enough u bolts to be able to use all hood supports. Had to buy more to finish installation. Not enough screws to keep joint from sagging. Had to add more chains to support joint.
