Home HVAC/R & Fans Heaters Unit Steam & Hot Water Beacon/Morris® Hydronic Heaters

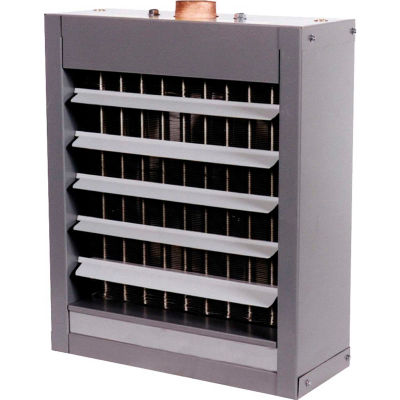

Beacon/Morris® Horizontal Hydronic Unit Heater, Header Type Coil Style, 26100 BTU - HBB036

Rollover image to zoom in

Click image to enlarge

Video - Click to Play
See all 38 items in product family

Beacon/Morris® Horizontal Hydronic Unit Heater, Header Type Coil Style, 26100 BTU - HBB036

Print

Item #: WBB1591774

Sold By: globalindustrial.com

Usually ships in 7 to 10 days Estimated lead times do not include weekends or holidays. Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

0 reviews | Write a review

Price: $ 463.95
Add to list

Customers Who Viewed This Also Viewed

Product Information
Customer Review
Product Q&A
Accessories
Beacon/Morris® Horizontal Hydronic Unit Heater, Header Type Coil Style, 26100 BTU - HBB036

Header type coil style, 36,000 BTU horizontal hydronic unit heater, OSHA fan guard standard, approved for residential/commercial water/steam applications, 20 gauge steel casing, seamless copper tubing coil with aluminum fin design, coil brazed into extruded header junctions, ETL certified at 200° EWT and 2 psi steam.

Documents
Owner's Manual

Documents are in PDF format

Product Specifications

    • BRANDBeacon Morris®
    • LENGTH INCHES16
    • WIDTH INCHES11
    • HEIGHT INCHES20
    • FAN DIAMETER INCHES10
    • MAXIMUM MOUNTING HEIGHT FEET9
    • WEIGHT LBS30
    • COLORGray
    • ASSEMBLYAssembled
    • CONSTRUCTIONSteel
    • INPUT (BTU/H) 2 LB STEAM 60°F ENTERING AIR36000
    • OUTPUT (BTU) HOT WATER 200°F IN 60°F ENTERING AIR26100
    • CFM HIGH550
    • RPM1550
    • OUTLET VELOCITY FPM550
    • FINAL AIR TEMPERATURE °F (HOT WATER)103
    • FINAL AIR TEMPERATURE °F (STEAM)119
    • VOLTAGE120
    • PHASE1
    • HEAT THROW FEET28
    • WATER FLOW (GPM)2.7
    • TYPEHorizontal
    • APPROVALS OR CERTIFICATIONSETL, ETLc
    • LIMITED WARRANTY YEARS1
    • MANUFACTURER'S PART NUMBERHBB036
    • HEAT SPREAD FEET--
    • SQUARE FOOT (EDR) EQUIVALENCE OF DIRECT RADIATION90
    • AMPS HIGH1.2
    • CONDENSATE LBS PER HOUR37
    • PRESSURE DROP FT./H200.09
