Beacon/Morris® Horizontal Hydronic Unit Heater, Header Type Coil Style, 61000 BTU - HBB084

Rollover image to zoom in

Click image to enlarge

See all 38 items in product family

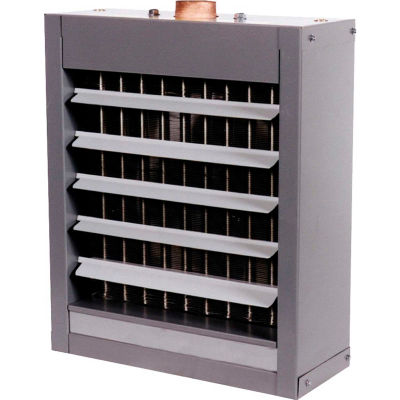

Beacon/Morris® Horizontal Hydronic Unit Heater, Header Type Coil Style, 61000 BTU - HBB084

Item #: WBB1591740

Sold By: globalindustrial.com

Usually ships in 7 to 10 days Estimated lead times do not include weekends or holidays. Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

0 reviews | Write a review

Price: $ 633.00
Product Information
Customer Review
Product Q&A
Accessories
Beacon/Morris® Horizontal Hydronic Unit Heater, Header Type Coil Style, 61000 BTU - HBB084

Header type coil style, 84,000 BTU horizontal hydronic unit heater, non-OSHA standard guard, approved for water/steam applications, 20 gauge steel casing, seamless copper tubing coil with aluminum fin design, coil brazed into extruded header junctions, ETL certified at 200° EWT and 2 psi steam.

Documents

Documents are in PDF format

Product Specifications

    • BRANDBeacon Morris®
    • LENGTH INCHES22
    • WIDTH INCHES13
    • HEIGHT INCHES26
    • FAN DIAMETER INCHES14
    • MAXIMUM MOUNTING HEIGHT FEET10
    • WEIGHT LBS47
    • ASSEMBLYAssembled
    • CONSTRUCTIONSteel
    • INPUT (BTU/H) 2 LB STEAM 60°F ENTERING AIR84000
    • OUTPUT (BTU) HOT WATER 200°F IN 60°F ENTERING AIR61000
    • CFM HIGH1400
    • RPM1000
    • OUTLET VELOCITY FPM900
    • FINAL AIR TEMPERATURE °F (HOT WATER)100
    • FINAL AIR TEMPERATURE °F (STEAM)115
    • VOLTAGE120
    • PHASE1
    • HORSEPOWER1/12
    • HEAT THROW FEET30
    • WATER FLOW (GPM)6.1
    • TYPEHorizontal
    • APPROVALETL, ETLc
    • LIMITED WARRANTY YEARS1
    • MANUFACTURER'S PART NUMBERHBB084
    • HEAT SPREAD FEET--
    • COLOR FINISHGray
    • SQUARE FOOT (EDR) EQUIVALENCE OF DIRECT RADIATION270
    • AMPS HIGH2.2
    • CONDENSATE LBS PER HOUR85
    • PRESSURE DROP FT./H200.24
